Optical Filter

Advanced optical filters based of dielectric thin-film feature low loss, low PDL and low dispersion. Field proven, highly reliable optical filters have contributed to various applications.

Optical Filter Product Line-Up

Model No. Features
MTF-VB Variable Bandwidth - Optical Tunable Filter
MTF-FT Compact Optical Tunable Filter
MTF-1 MEMS-based Tunable Filter
OFM-15 2 port In-Line Optical Filter
WDM-15 3 Port Add/ Drop Filter Module
MDM-15-4/8 Multi channel Mux/DeMux Filter Module
CWDM-15 3 Port Add/ Drop CWDM Module
Metro-X CWDM Mux/ Demux Filter Module
C-CWDM Compact CWDM Mux/Demux Filter Module

Variable Bandwidth - Optical Tunable Filter

MTF-VBNEW!

MTF-VB



The variable bandwidth – optical tunable filter is a compact MEMS-based optical component that removes noise after optical amplification in optical transceivers. While previous 1st and 2nd generation optical tunable filters could only adjust the transmitted wavelength of optical signals, our newly developed wavelength and bandwidth optical tunable filter (MTF-VB), based on santec's proprietary patented technology, can adjust not only the transmitted wavelength in the range of approximately 40 nm but also the transmitted bandwidth from 200GHz to 700GHz (3dB bandwidth). This is santec’s first compact component product supporting flexible transmission rate ,which enables ASE noise rejection with an optimal filter bandwidth for different optical signal bands from 400Gb/s to 1.2Tb/s (QPSK, 16QAM, 64QAM, etc). This product is compatible with SFF (Small Form Factor) industry standard-compliant optical transceivers such as QSFP-DD and CFP2-DCO.The ultra-compact size (9 x 5.5 x 3.5 mm) has been achieved to meet the demand for optical transceivers, which are constantly being miniaturized.



【Features】
  • Ultra-Compact Size
  • Minimum Fiber Bending Radius of 5 mm
  • Excellent Electro-Optical Characteristics
  • Telcordia GR-468/GR-1221 Qualified

  • RoHS Compliant

News Release

Compact Optical Tunable Filter

MTF-FTNEW!

MTF-FT



MTF-FT features a flat-top frequency response, improved noise rejection performance of more than 10 times compared to conventional products using SANTEC’s proprietary patented technology. The improved noise rejection performance provides optimum performance for next-generation optical transceivers of 800 Gb/s, 1.2Tb/s or 1.6Tb/s. MTF-FT is compatible with Small Form Factor (SFF) industry standard compliant optical transceiver such as QSFP-DD and CFP2-DCO. The ultra-compact size (7.5 x 5.5 x 3.5 mm) and low-voltage drive enable the product to meet the demand for optical transceivers, which are constantly being reduced in size and power consumption.



【Features】
  • Ultra-Compact Size
  • 17V LowVoltage Drive
  • ExcellentElectro-Optical Characteristics
  • Telcordia GR-468/GR-1221 Qualified
  • RoHS Compliant

  • Minimum Fiber Bending Radius of 5 mm

News Release

MEMS-based Tunable Filter

MTF-1

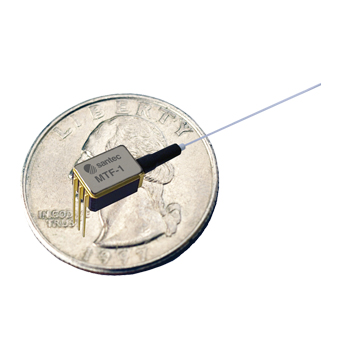

MTF-1



SANTEC's MTF is a single channel, world smallest Micro Electro Mechanical Systems (MEMS) tunable filter (TF) for 400G+ digital coherent transceivers. The MTFis a superior passive optical component used in CFP and CFP2 form factor transceivers to reduce optically amplified noise and to improve transmission quality. The MTF has achieved a record low-voltage specification of 12V; 5 times lower when compared with other 60V suppliers. In addition, the MTF does not need a specific high voltage IC to drive the component.



【Features】
  • Ultra-Compact Size
  • 12V LowVoltage Drive
  • ExcellentElectro-Optical Characteristics
  • Telcordia GR-468/GR-1221 Qualified
  • RoHS Compliant

  • Minimum Fiber Bending Radius of 5 mm



【Applications】
  • ASE Noise Reduction in EDF Amplifiers
  • 400G+ Transceiversin CFP / CFP2 Form Factors
  • Highly Reliable Amplifiers
  • Optical Channel Monitors

2 port In-Line Optical Filter

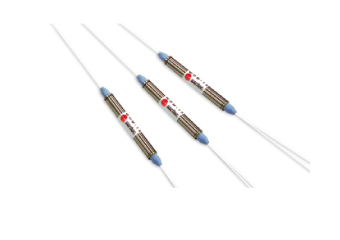

OFM-15

OFM-15



OFM-15 is a compact and reliable bandpass filter module. It uses our proven interference filter technology and quality manufacturing techniques.

【Filter types】
  • 100GHz/200GHz spacing for DWDM
  • 4 skip 0, 4 skip 1, 8 skip 1
  • 1310/1550nm splitter
  • Blue/Red splitter


【Features】
  • Low Loss, Low PDL
  • High Isolation
  • Custom Filter Design
  • Epoxy Free on Optical Pass
  • Telcordia GR-1221 Qualified

OFM-15 (English)

3 Port Add/ Drop Filter Module

WDM-15

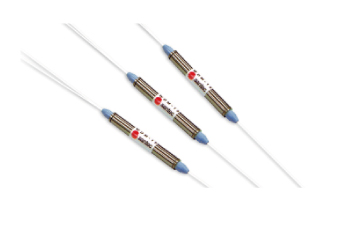

WDM-15



WDM-15 is a compact and reliable bandpass filter module. It uses our proven interference filter technology and quality manufacturing techniques.

【Filter type】
  • 100GHz/200GHz spacing for DWDM
  • 4 skip 0, 4 skip 1, 8 skip 1
  • 1310/1550nm splitter
  • Blue/Red splitter


【Features】
  • Low Loss, Low PDL
  • High Isolation
  • Custom Filter Design
  • Epoxy Free on Optical Pass
  • Telcordia GR-1221 Qualified
  • RoHS Compliance

Multi Channel Mux/DeMux Filter Module

MDM-15-4/8

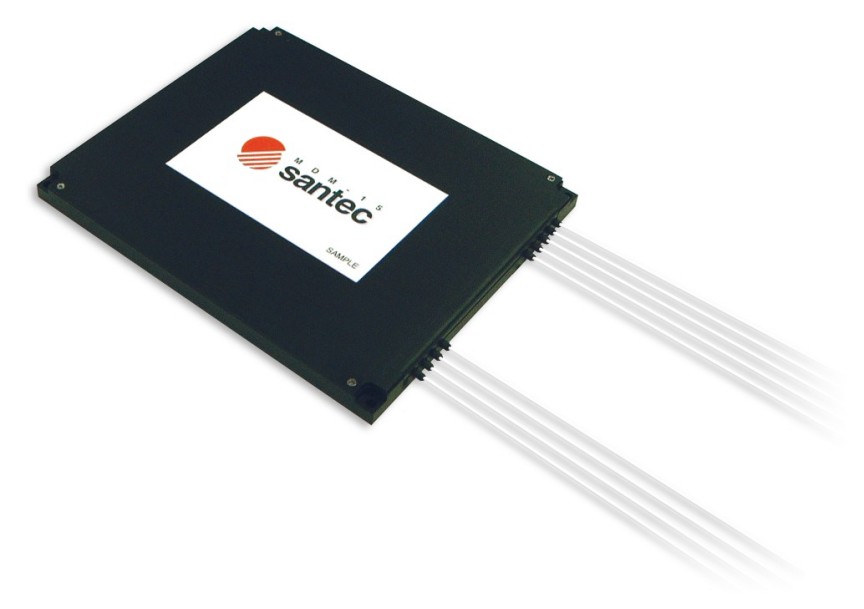

MDM-15-4/8

MDM-15 is a multi-channel WDM Multiplexer or Demultiplexer based on dielectric thin-film filter technology. The module is designed to add or drop 4/8 channels with ITU grid spacing of 100, 200 GHz.

【Filter type】
  • 100 GHz, 200 GHz spacing for DWDM


【Features】
  • Low Loss, Low PDL
  • High Isolation
  • Custom Filter Design
  • Epoxy Free on Optical Pass
  • Telcordia GR-1221 Qualified

3 Port Add/ Drop CWDM Module

CWDM-15

CWDM-15



Especially designed for CWDM networks, CWDM-15 unit is optimized for wide-pass band and low loss to reduce costs and extend reach in Metro and Access equipment.

【Features】
  • Wide Passband
  • High Isolation
  • Epoxy Free on Optical Pass
  • Wide Operating Temperature Range -40 to +85℃
  • Telcordia GR-1221 Qualified
  • RoHS Compliant

CWDM-15 (English)

CWDM Mux/ Demux Filter Module

Metro-X

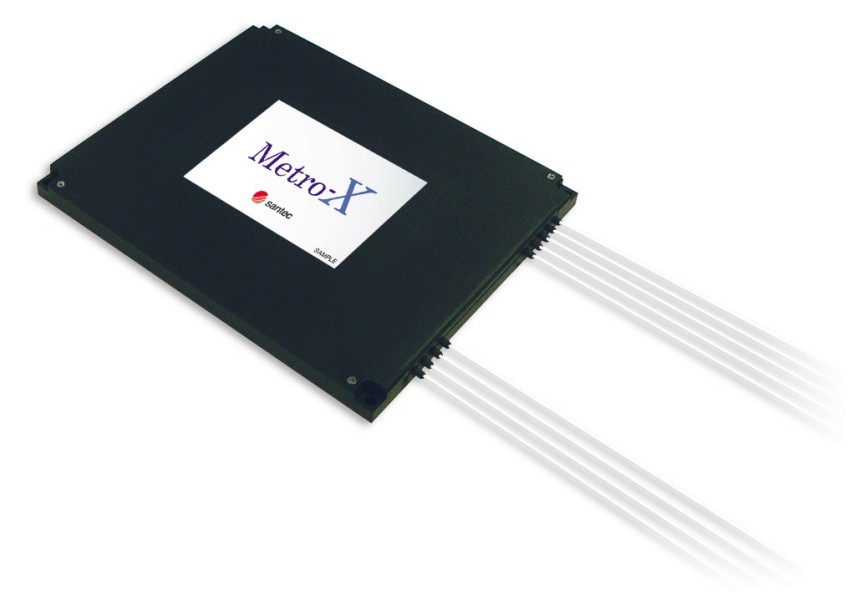

Metro-X



Metro-X is based on dielectric thin-film technology designed for integration in low cost Metro and Access networks.

【Features】
  • Wide Passband
  • High Isolation
  • Epoxy Free on Optical Pass
  • Wide Operating Temperature Range -40~+85 degC
  • Telcordia GR-1221 Qualified
  • RoHS Compliant

Metro-X (English)

Compact CWDM Mux/Demux Filter Module

C-CWDM

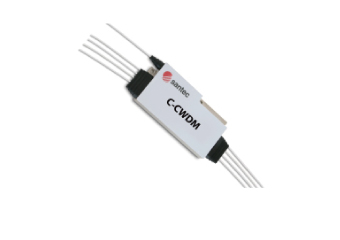

C-CWDM

C-CWDM module has been specifically designed for low cost CWDM systems where both package size and insertion loss are critical.

【Features】

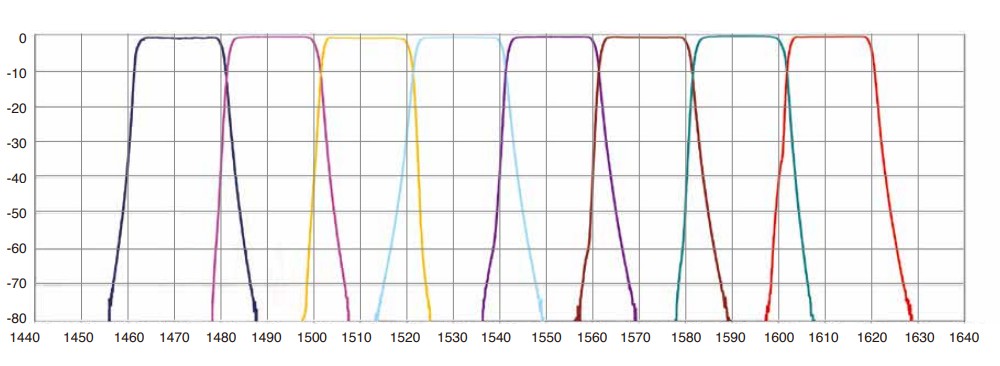

  • Compact, CWDM 20 nm spacing, 8 channels
  • Extremely Low Loss <1.5dB
  • Extremely Link Loss <2.5dB (Typ. 2.0dB)
  • Wide Passband
  • High Isolation
  • Telcordia GR-1221 Qualified
  • RoHS Compliant

C-CWDM (English)

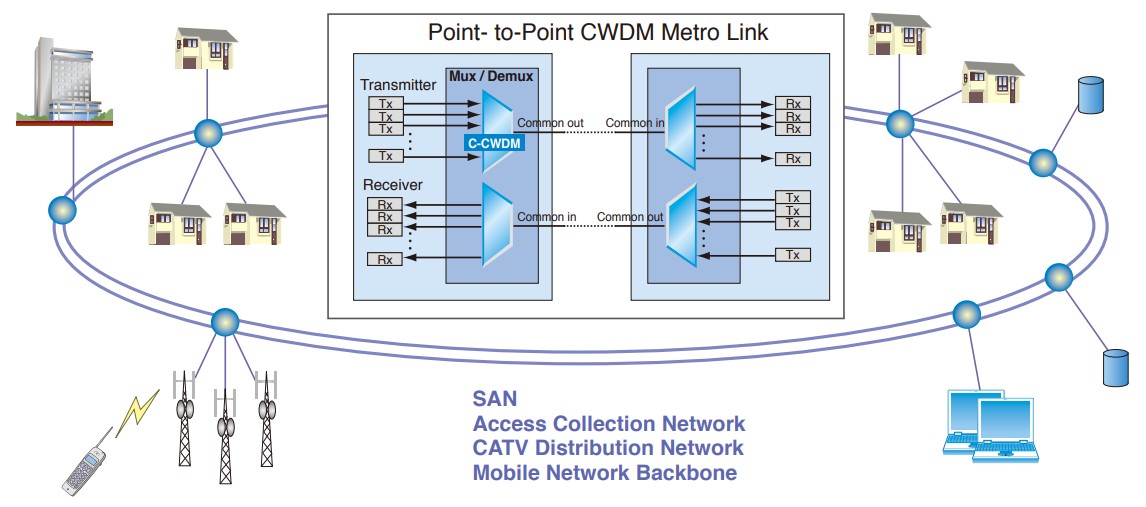

Network Implementation
