Outstanding Performance
LCOS based Programmable Optical Filter
WSS-2000NEW!
Programmable Arbitrary Spectral Shaping
The WSS-2000 is an LCOS-based Programmable Optical Filter. Santec's proprietary LCOS (Liquid Crystal on Silicon) technology inside the WSS-2000 offers the ultimate flexibility, enabling the user to program a limitless range of optical filtering, attenuation, and switching schemes. In addition, the phase control function is also available. The WSS-2000 is an enabling technology for investigating next-generation optical networks by utilizing the filter as an optical equalizer of high-speed signals, as an adaptive channel filter for advanced optical transmission systems (DWDM, OFDM), as a WSS emulator or as a flexible test and measurement system.
Demo units are available.
Features
- Programmable arbitrary spectral generation and spectral shaping
- Fine frequency and bandwidth control using LCOS. Setting resolution 0.78 GHz (typ.)
- Excellent optical filtering with steeper edge 400 dB/nm (typ.)
-
Optical switching configuration (1x1, 1x2, 1x4)
-
Optical phase control function (Option)

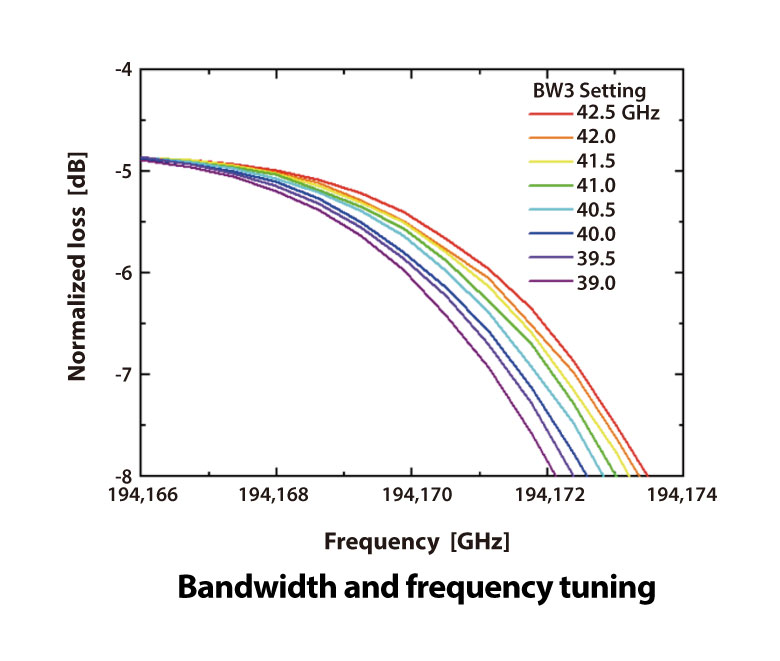

Measurement Data
The following items can be set as parameters for the phase control function
- Phase Setting
- Group delay Setting
- Chromatic dispersion Setting
Applications
- Optical amplifier testing and evaluation with optical equalizer for high-speed optical signal
- 100 Gb/s, 400 Gb/s high speed transmission test
- Adjustable and adaptive DWDM,OFDM channel filtering
- Flexible test and measurement
- Next generation bundle wavelength OXC
- Pulse shaping
- Optical comb generation
- Wavelength Selective Switch (WSS) emulator
Specifications
| Category | Parameter | Unit | Min. | typ. | Max. | Notes |
|---|---|---|---|---|---|---|
| Filter Control | Operating frequency range | THz | 191.250 | 196.150 | ||
| Operating wavelength range | nm | 1528.383 | 1567.543 | |||
| Frequency setting accuracy | GHz | -2.5 | 2.5 | |||
| Frequency setting resolution | GHz | 0.78 | ||||
| Operating bandwidth range | GHz | 10 | 4900 | |||
| nm | 0.08 | 39 | ||||
| Bandwidth setting accuracy | GHz | -5 | 5 | |||
| Bandwidth setting resolution | GHz | 1.56 | ||||
| Attenuation control range | dB | 0 | 20 | |||
| Attenuation setting resolution | dB | 0.01 | ||||
| Attenuation setting accuracy 1 | dB | -0.2 | 0.2 | Attenuation 1.0-2.0 dB | ||
| Attenuation setting accuracy 2 | dB | -0.5 | 0.5 | Attenuation 2.1-5.0 dB | ||
| Attenuation setting accuracy 3 | dB | -1 | 1 | Attenuation 5.1-15.0 dB | ||
| Filter edge slope | dB/nm | 400 | ||||
| Group Delay Control Range | ps | -25 | 25 | Option | ||
| Switching | Number of input ports | 1 | ||||
| Number of output ports | 1, 2 or 4 | |||||
| Setting time | msec | 500 | Depending on setting spectrum | |||
| Loss and Dispersion | Insertion loss | dB | 5.5 | 6.5 | Bandwidth@-3 dB > 25 GHz | |
| Insertion loss uniformity | dB | 1.1 | 2.5 | |||
| Polarization dependent loss (PDL) | dB | 0.8 | Attenuation 0-10.0 dB | |||
| Return loss | dB | 30 | 35 | |||
| Extinction ratio | dB | 35 | 40 | |||
| Differential Group Delay (DGD) | ps | 0.2 | 0.5 | |||
| Optical power | Maximum total input power | dBm | 27 | |||
| Maximum per-channel optical power | dBm | 13 | ||||
| Environmental | Operating temperature | degC | 15 | 35 | ||
| Electrical | Power supply | V | Input AC 100-240V 50-60Hz | |||
| Power consumption | VA | 15 | ||||
| Communication interface | Ethernet | |||||
| Mechanical | Dimensions(W) x (D) x（H) | mm | 210 x 350 x 88 | |||
| Weight | kg | 4 | ||||
