Outstanding Performance

Optical Power Monitor


IPD/MTP/UTP/NTP are optical power monitoring devices consisting of individual tap-integrated photo detector.
They eliminate the need for a separate optical fiber coupler/splitter and a photo detector, and provide a simple and low cost solution for optical power monitoring of DWDM, optical switch and amplifier systems.

Optical Power Monitor Product Line-Up

Model No. Features
INTP Isolator-integrated Nano Tap Photo Detector
NTP Nano Tap Photo Detector
UTP-1 Ultimate Tap Photodetector
MTP-1/8/10/12 Miniature Tap Monitor
IPD-1/4/8/10 Integrated Tap Photo Detector
IPD-UD Unidirectional Tap-Integrated Photo Detector
PM-IPD Integrated Tap Photo Detector with PMF
PDA-1/4/8/10 Fiber-Pigtailed Photo Detector
IPM-8 Digital Output multi-channel Monitor

Isolator-integrated Nano Tap Photo Detector

INTPNEW!

INTP


Santec's INTP is an optical isolator and tap photo detector integrated device. Santec's latest and smallest uni-directional tap photo detector and optical isolator are integrated into one package. While integrating two devices, the size of the INTP remains the same size as the NTP, the smallest tap photo detector. INTP allows the customer to reduce the module footprint while increasing the design capability.
Santec's tap photo detector series are excellent for high-density integration in next-generation small form factor pluggable module, and the INTP series will enable more fiexible design of the next-generation high-performance pluggable small form factor such as QSFP-DD and OSFP.

  • Ultra-compact size
  • Excellent characteristics
  • RoHS compliant
  • Compatible with φ0.16 bare fiber and minimum fiber bending radius of 5 mm
News Release

Nano Tap Photo Detector

NTPNEW!

NTP


Santec's NTP is the latest and smallest single high-directivity uni-directional tap photo detector. The size of the NTP is reduced by 50% in volume compared to the UTP-1. NTP allows the customer to reduce the module footprint while increasing the design capability.
Santec's tap photo detector series are excellent for high-density integration in next-generation small form factor pluggable module and the NTP series will enable the next-generation high-performance pluggable small form factor such as QSFP-DD and OSFP.

  • Ultra-compact size
  •  Excellent characteristics
  • Telcordia GR-468 qualified
  • RoHS compliant
  • Minimum fiber bending radius of 5 mm is available
News Release

Ultimate Tap Photodetector

UTP-1

IPM-8

UTP is an Ultra-Compact single, high directivity, uni-directional tap monitor. Compared to our current uni-directional MTP-1, the new UTP-1 has a 78% size reduction, allowing the customer to reduce their module’s footprint while increasing design capability.

  • Ultra-Compact Size
    (Reduced the volume 78% from MTP1)
  • High Directivity
  • RoHS Compliant
  • Pin Bending is Available
  • Telcordia GR-468 Qualified
  • Minimum Fiber Bending Radius of 5mm Available

Miniature Tap Monitor

MTP-1/8/10/12

MTP-1/8/10/12MTP-1/8/10/12

MTP is a miniaturized tap-integrated photo detector array with 8 or 10 channels. (MTP-8, MTP-10 respectively) Santec has realized a significant size reduction of our standard IPD (Integrated Photo Detector) series, while maintaining high performance and reliability. The MTP series photo detector arrays are suitable for the high-density integration for next generation optical network systems.

  • Extremely Compact Design(Reduced the volume 75% from IPD-8)
  • Telcordia GR-468-CORE Qualified
  • Variety of Tap Ratio
  • RoHS Compliant


【Applications】
  • Power and Channel Monitoring for WDM Systems
  • Power Monitoring in any Optical Communications

Integrated Tap Photo Detector

IPD-1/4/8/10

PM-IPDPM-IPD

IPD is an optical power monitoring device consisting of individual tap-integrated photo detectors. The IPD is very compact and can be easily mounted on a PCB for system use. Optical properties are excellent and include a broad wavelength range covering C and L -band with low insertion loss and high sensitivity.
The IPD eliminates the need for an optical fiber coupler/splitter and a separate photo detector. The IPD provides a simple and low cost solution for optical power monitoring of DWDM, optical switch and amplifier systems.

  • Excellent Optical Performance
  • Compact Design
  • Custom Build Available
  • Telcordia GR-468 Qualified
  • RoHS Compliant


【Options】
  • IPD-UW
        Operates over a wide wavelength range, 1260 nm-1360 nm and 1510 nm-1610 nm.
  • IPD-UD
        Unidirectional with high PD isolation (>20 dB) between input and output ports.
  • PM-IPD
        Polarization maintaining version with high PER, >20 dB.

Unidirectional Tap-Integrated Photo Detector

IPD-UD

PM-IPD


Unidirectional IPD is an optical power monitoring device designed to be only sensitive to light propagating in one direction. The IPD-UD is compact and can be easily mounted on a PCB for system use. Besides enhanced directivity the optical performance of the IPD-UD mirrors that of the standard IPD, including a broad wavelength range, covering C and L band, with low insertion loss and high sensitivity.
The IPD eliminates the need for an optical fiber coupler/splitter and a photo detector. The IPD provides a simple and low cost solution for optical power monitoring of DWDM, optical switch and amplifier systems.

  • Excellent Optical Performance
  • High Directivity
  • Compact Design
  • 1, 4, 8 and 10 channel versions available
  • Custom Build Available
  • Telcordia GR-468 Qualified
  • RoHS Compliant

Integrated Tap Photo Detector with PMF

PM-IPD

PM-IPDPM-IPD

IPD with PMF(Polarization Maintaining Fiber)is an optial monitoring device consisting of individual tap-integrated photo detectors. The IPD is very compact and is easily mounted on a PCB for system use. Optical properties are excellent and include a broad wavelength range covering C and L -band with low insertion loss and high sensitivity.
The IPD eliminates the need for an optical fiber coupler/splitter and a separate photo detector.

  • Excellent Optical Performance
  • High Polarization Extinction Ratio
  • Compact Design
  • CUstom Build Available
  • Telcordia GR-468 Qualified
  • RoHS Compliant

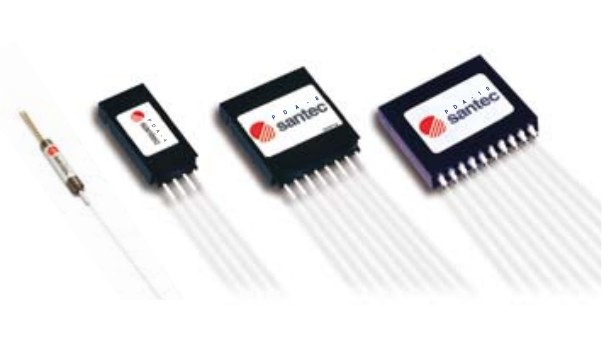

Fiber-Pigtailed Photo Detector

PDA-1/4/8/10

PDA-1/4/8/10PDA-1/4/8/10

PDA is an optical power monitoring device consisting of terminating photo detectors that are integrated with fiber inputs. The PDA is very compact and is easily mounted on a PCB for system use.
The PDA provides a simple and low cost solution for power monitoring of DWDM and amplifier systems.

  • Excellent Optical Performance
  • Compact Design
  • Telcordia GR-468-CORE Qualified
  • RoHS Compliant


【Applications】
  • Power and Channel Monitoring for WDM Systems
  • Power Monitoring in any Optical Communications

Digital Output Multi-Channel Monitor

IPM-8

IPM-8IPM-8

IPM-8 is an integrated tap-monitor and a high dynamic range log-amplifier module for any DWDM application. This device detects optical signal, and calculates to absolute optical power using a calibration table.
The optical power data can be accessed from electrical communication interface.

  • Small Package
  • Good Accuracy
  • Wide Dynamic Range
  • I2C and RS-232C Interface
