Outstanding Performance

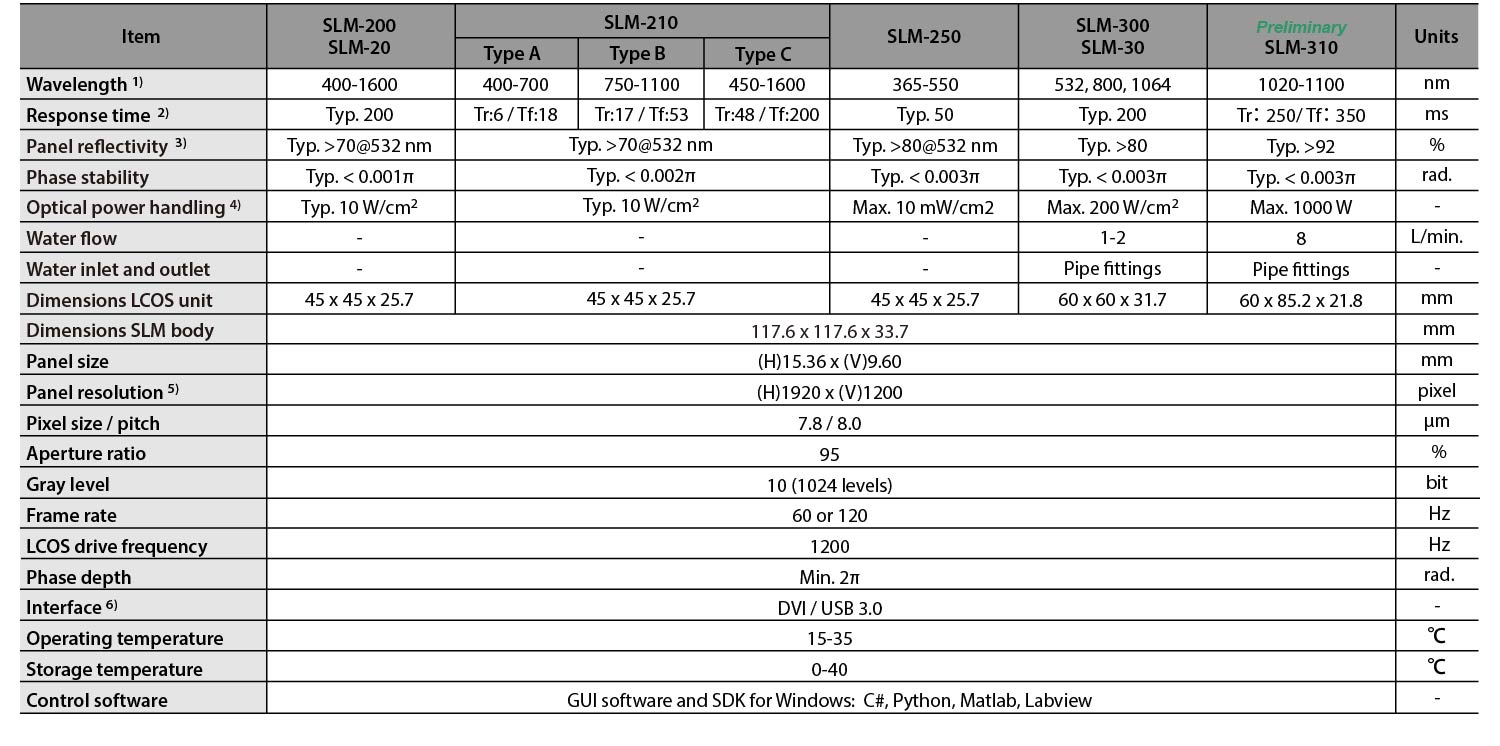

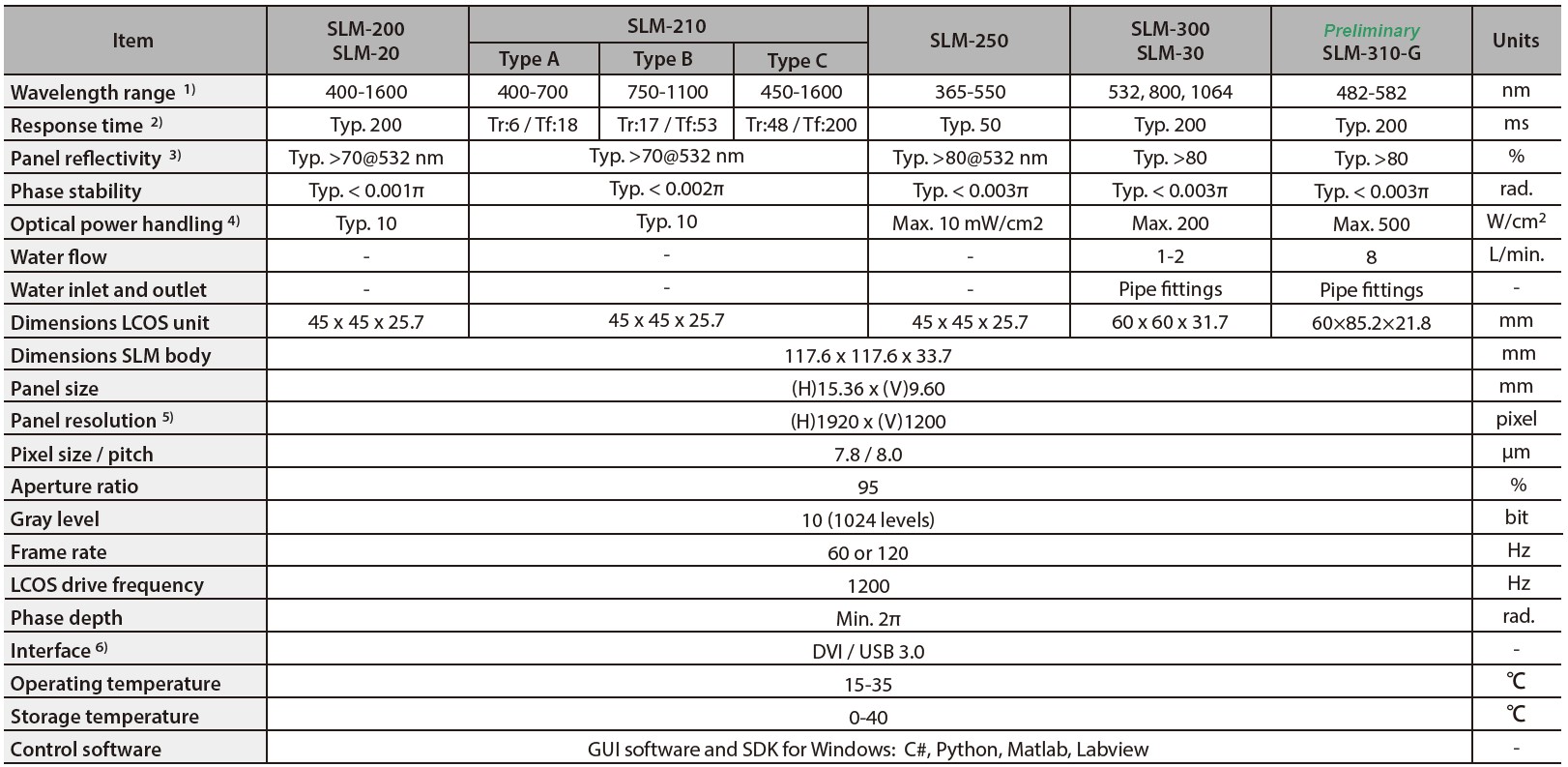

Comparison Tables for SLM

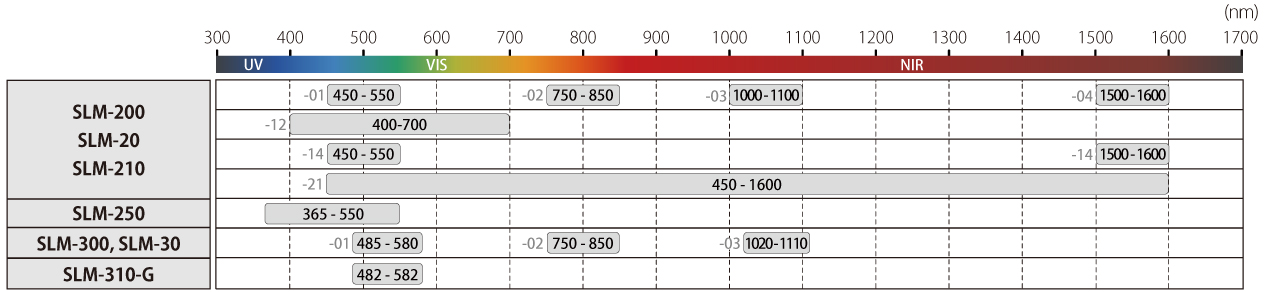

Wavelength Range

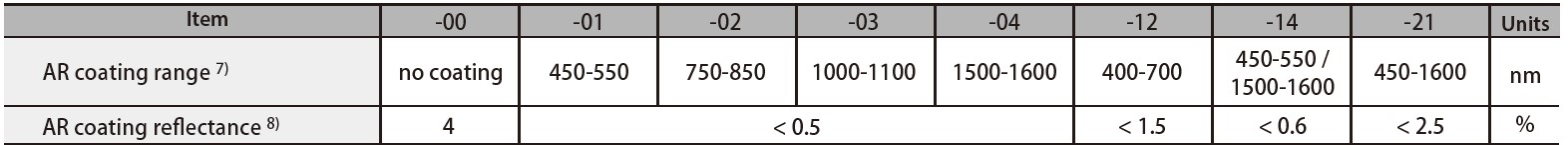

<AR coating option for SLM-200, 20, 210>
1) SLM-200, 20, 210：No AR coating, refer to table for available AR coating ranges.
2) Response time is a typical value and is not affected by frame rate.
Tr: Rise time between 10% and 90% levels in a phase change of 0 to 1023 bit (2π rad.) at 25°C.
Tf: Fall time between 90% and 10% levels in a phase change of 1023 to 0 bit (2π rad.) at 25°C.
3) Zero-order reflection. Depending on specified wavelength range.
4) The value is not guaranteed.
Depending on the conditions of the laser oscillator used, the product's life may be significantly
shortened due to accumulated exposure time.
SLM-200, 20, 210: 1550 nm CW, 2.0 mm beam diameter
SLM-250: Max. 10 mW/cm2 : @365 nm, 24H/day continuous operation.
SLM-250: Typ. 40 mW/cm2 : Peak power @355 nm, Pulse laser.
SLM-300, 30: CW @1064 nm
SLM-310-G: CW @ 532 nm
5) Specification on the defect pixels are no object.
6) DVI: 10-bit using RGB 8-bit, 3 colors
7) We support custom AR coating request. Please contact us for detail.
8) Angle of incidence = 0 degree
