Take Control of Light
Spatial Light Modulator
Our reflective LCOS (liquid crystal on silicon) is an advanced spatial light modulator for full high resolution applications. The Full-high definition (Full-HD) resolution, 10-bit (1024 gray levels) and excellent phase stability (~0.003π rad.) make ultra-fine light modulation possible for various applications.
SLM Product Line-Up
| Model No. | Features |
|---|---|
| SLM-300 | High-Power LCOS Spatial Light Modulator |
| SLM-250 | UV Hardened Spatial Light Modulator |
| SLM-200 | Full HD Reflective Spatial Light Modulator |

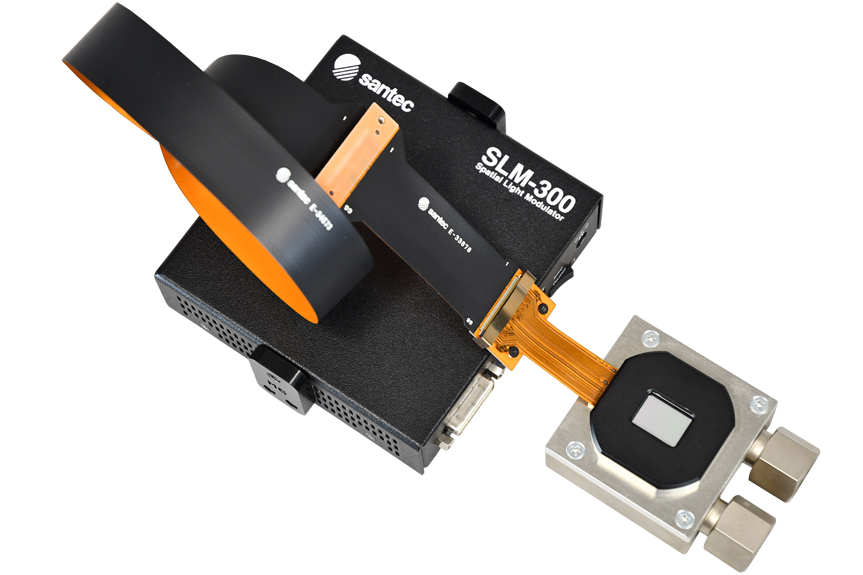

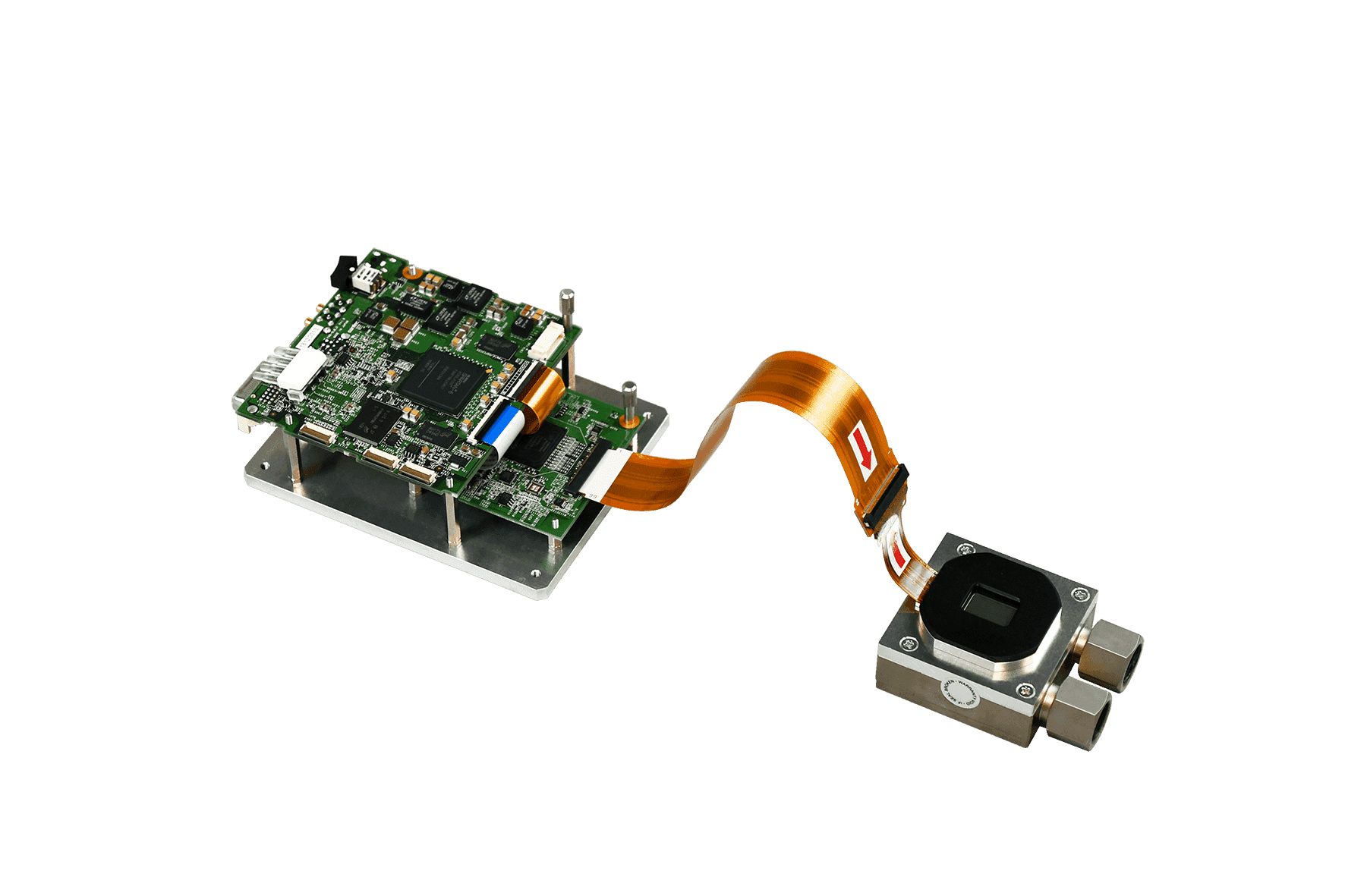

High-Power LCOS Spatial Light Modulator
SLM-300
Our spatial light modulator (SLM) is based on reflective liquid crystal on silicon (LCOS) micro-display technology. The SLM-300 high-power model holds the world record for high-power durability up to CW 200 Watts. The SLM-300 has 100 times higher power durability when compared with Santec’s conventional SLM product, the SLM-200.
- High Power-durable LCOS based SLM
- High Phase Resolution 10-bit (1024) Gray Level
- Ultra Low Phase Noise ~0.003πrad.(Typ.)
- Laser processing
- 3D printing
- IC trimming
SLM-300 Specifications
| Item | min | max | Units | Notes |
|---|---|---|---|---|
| Operating Wavelength Range | 532 , 800 , 1064 | nm | ||
| Panel Size | (H) 15.36 x (V) 9.60 | mm | Active area | |
| Pixel Resolution | (H) 1920 x (V) 1200 | pixel | ||
| Pixel Size / Pitch | 7.8 / 8.0 | μm | ||
| Panel Reflectivity | Typ. ＞80 | % | Depending on specied wavelength range | |
| Aperture Ratio | 95 | % | ||
| Gray Level | 10 (1024) | bit | ||
| Frame Rate | 60 or 120 | Hz | Factory default setting | |
| LCOS Drive Frequency | 1200 | Hz | ||
| Phase Depth | 2π | - | rad. | |
| Phase Stability | Typ. < 0.003π | rad. | ||
| Response Time | Typ. 200 | ms | ||
| Interface | DVI* / USB 3.0 | - | *10-bit using RGB 8-bit, 3 colors | |
| Operating Temperature Range | 15 | 35 | degC | No condensation |
| Storage Temperature | 0 | 40 | degC | No condensation |
| Optical Power Handling | - | 200 1) | W/cm² | CW @1064 nm |
| Dimensions | 122 x 122 x 38.3 | mm | ||
| Control software | GUI software and SDK for Windows | - | ||
| Water Flow | 1 - 2 | L/min | 15 - 25 degC | |
| Water Inlet and Outlet | Pipe fittings | - | Rc(PT) 3/8 inch female 2) | |
1) The value is not guaranteed. Please refer Santec SLM technical sheet for judgement of useable light power.
2) Supports NPT standard using attached conversion adapters.
Wavelength option
Introduction Video
Papers
- https://www.osapublishing.org/oe/abstract.cfm?URI=oe-25-18-21947
- https://www.osapublishing.org/ol/abstract.cfm?uri=ol-45-9-2482
- https://iopscience.iop.org/article/10.1088/1361-6455/aacac5
- https://ui.adsabs.harvard.edu/abs/2017JaJAP..56iNA05S/abstract
- https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5018855/
- https://www.osapublishing.org/oe/abstract.cfm?uri=oe-28-16-23584

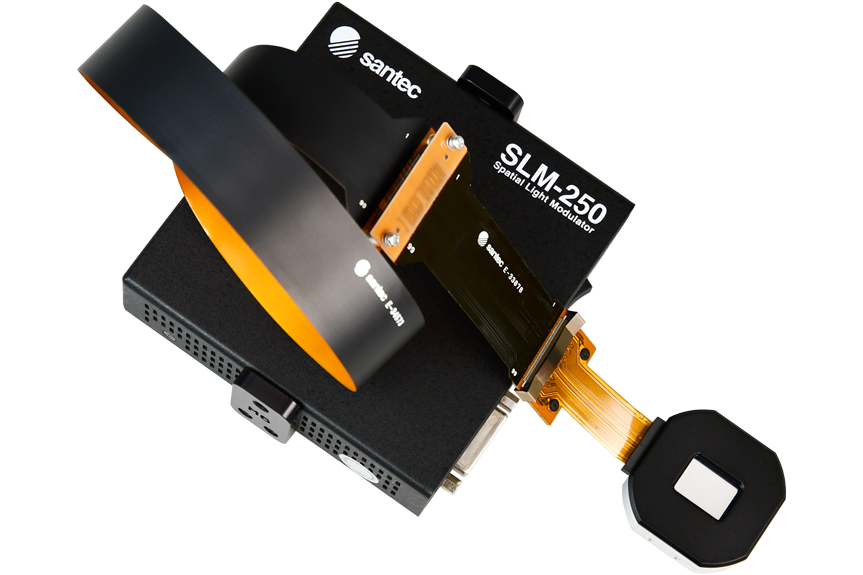

UV Hardened Spatial Light Modulator
SLM-250
Reflective LCOS (Phase only)
We have introduced an ultraviolet (UV) hardened spatial light modulator (SLM) based on Liquid Crystal on Silicon (LCOS) technology. This product supports WUXGA (1920×1200) and Full-HD (1920×1080) video resolutions. The 2nd generation SLMs from Santec offer 4 times better gray scale resolution and 10 times better phase stability when compared with conventional products in the market and the 1st gen Santec SLMs.
The UV model SLM (SLM-250) has a 42 times higher UV tolerance compared to the visible to Infra-Red (IR) wavelength SLM-200. A power density up to 10mW/cm2 is sustainable using a novel liquid crystal and dielectric mirror design.
The SLM-250 follows the popular first generation SLM-100 from Santec that has been deployed in various industrial and scientific applications, including beam shaping, computer-generated holograms, optical manipulation, and wave-front compensation.
- Laser processing
- Biology sensing
- 3D printing
- IC triming
SLM-250 Specifications
| Item | min | max | Units | Notes |
|---|---|---|---|---|
| Wavelength Range | 365 | 550 | nm | |
| AR Coating Range | 365 | 550 | nm | |
| AR Coating Reflectance | – | 0.7 | % | Angle of incidence = 0 degree |
| Panel Size | (H) 15.36 x (V) 9.60 | mm | Active area | |
| Pixel Resolution | (H) 1920 x (V) 1200 | pixel | ||
| Pixel Size / Pitch | 7.8 / 8.0 | μm | ||
| Panel Reflectivity | Typ. > 70 | % | ||
| Aperture Ratio | 95 | % | ||
| Gray Level | 10 (1024) | bit | ||
| Frame Rate | 60 or 120 | Hz | Factory default setting | |
| LCOS Drive Frequency | 1200 | Hz | ||
| Phase Depth | 2π | – | rad. | |
| Phase Stability | Typ. < 0.003π | rad. | ||
| Response Time | Typ. 50 | ms | ||
| Interface | D-DVI* / USB 3.0 | – | *10-bit using RGB 8-bit, 3 colors | |
| Operating Temperature Range | 15 | 35 | degC | No condensation |
| Storage Temperature | 0 | 40 | degC | No condensation |
| Optical Power Handling 1) | Typ. 40 | MW/cm² | Peak power @355 nm, Pulse laser, pulse width 260 psec, repetition rate 100 Hz | |
| – | 10.0 | mW/cm² | @365 nm, 24 H/day continuous operation | |
| Dimensions | 122 x 122 x 38.3 | mm | ||
| Control Software | GUI software and SDK for Windows | – | ||
1)The value is not guaranteed. Please refer Santec SLM technical sheet for judgement of useable light power.
Papers
- https://www.osapublishing.org/oe/abstract.cfm?URI=oe-25-18-21947
- https://www.osapublishing.org/ol/abstract.cfm?uri=ol-45-9-2482
- https://iopscience.iop.org/article/10.1088/1361-6455/aacac5
- https://ui.adsabs.harvard.edu/abs/2017JaJAP..56iNA05S/abstract
- https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5018855/
- https://www.osapublishing.org/oe/abstract.cfm?uri=oe-28-16-23584

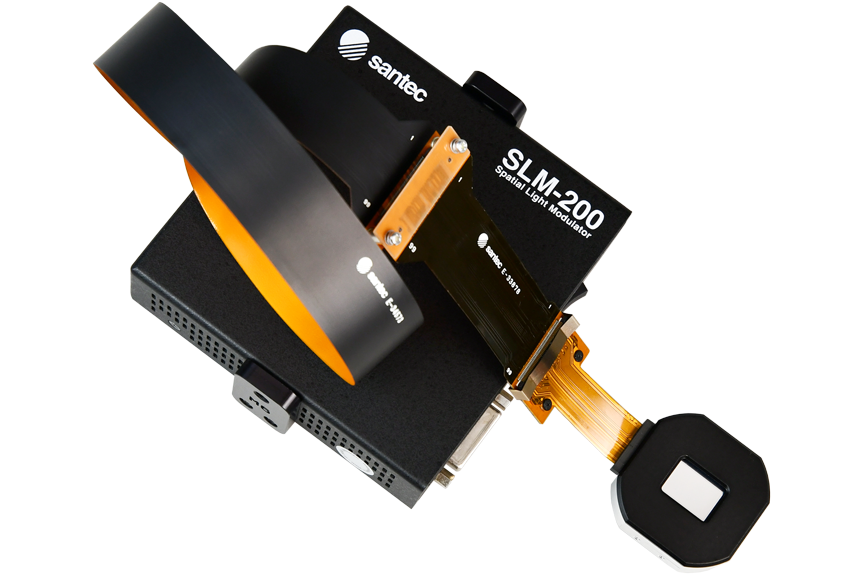

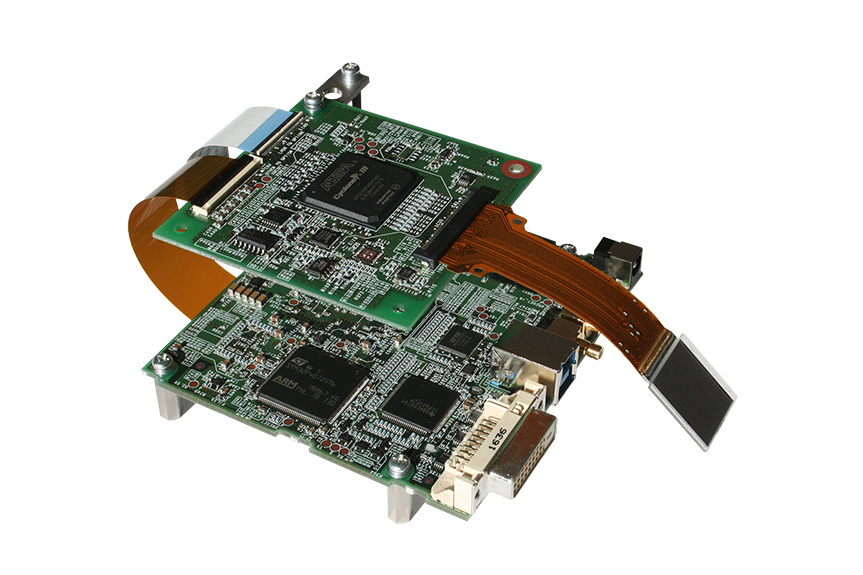

Full HD Reflective Spatial Light Modulator
SLM-200
Our reflective LCOS (liquid crystal on silicon) is an advanced spatial light modulator for full high resolution applications. The Full-high definition (Full-HD) resolution, 10-bit (1024 gray levels) and excellent phase stability (~0.001π rad.) make ultra-fine light modulation possible for various applications.
■User-friendly DVI interface
■High Resolution: 10-bit (1024 gray levels)
■Ultra-low Phase Noise: ～0.002π rad.
■Super Flatness Available: λ/40 @633 nm
The flatness of the LCOS can be corrected to λ/40 with the accompanying lookup table.
Specifications
| Item | min | max | Units | Notes |
|---|---|---|---|---|
| Operating Wavelength Range | 450 | 1600 | nm | (Refer to appended table about AR coating option) |
| Panel Size | (H) 15.36 x (V) 9.60 | mm | Active area | |
| Pixel Resolution | (H) 1920 x (V) 1200 | pixel | ||
| Pixel Size / Pitch | 7.8 / 8.0 | μm | ||
| Panel Reflectivity | Typ. > 80 | % | Depending on specified wavelength range | |
| Aperture Ratio | 95 | % | ||
| Gray Level | 10 (1024) | bit | ||
| Frame Rate | 60 or 120 | Hz | Factory default setting | |
| LCOS Drive Frequency | 1200 | Hz | ||
| Phase Depth | 2π | – | rad. | |
| Phase Stability | Typ. < 0.001π | rad. | ||
| Response Time | Typ. 300 | ms | ||
| Interface | DVI*/ USB 3.0 | – | *10-bit using RGB 8-bit, 3 colors | |
| Operating Temperature Range | 15 | 35 | degC | No condensation |
| Storage Temperature | 0 | 40 | degC | No condensation |
| Optical Power Handling | Typ. 10 1) | W/cm² | ＠1550 nm, CW, 2.0 mm beam diameter | |
| Dimensions | 117.6 x 117.6 x 33.7 | mm | ||
| Control Software | GUI software and SDK for Windows | – | ||
1) The value is not guaranteed. Please refer Santec SLM technical sheet for judgement of useable light power.

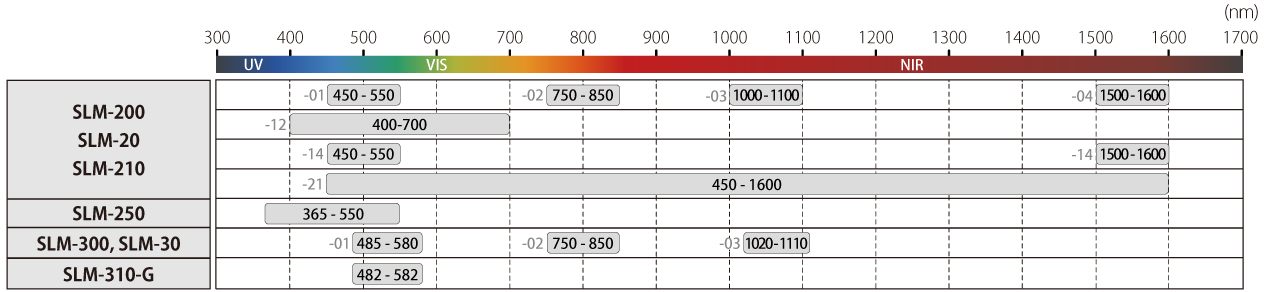

AR Coating Option
| Item | Parameter | Units | |||||
|---|---|---|---|---|---|---|---|
| Ordering Code Number | -01 | -02 | -03 | -04 | -12 | -14 | – |
| AR Coating Range | 450-550 | 750-850 | 1000-1100 | 1500-1600 | 400-700 | 450-550 / 1500-1600 | nm |
| AR Coating Reflectance 2) | < 0.5 | < 1.5 | < 0.6 | % | |||
2) Angle of incidence = 0 degree
■LASER Processing and High Power Resistance
Below are examples for the high power resistance. We can do simulation with other conditions.
■Wavefront Correction
Flatness up to "lambda/40” can be achieved using a Michelson Interferometer with Shack-Hartmann sensor.
■Hologram
SLM-200 can be used for holography, made easier with our exclusive GUI.
■Optical Vortex
SLM-200 can be used to generate optical vortex and be utilized for optical tweezer and SDN (Space Division Multiplexing) applications.
Beam steering
Wavefront correction
Pulse/Beam shaping
Diffractive optics
Optical tweezer
・Laser Processing Machine (※)
We are developing a Laser Processing Machine incorporating a SLM with Professor Yamamoto and Associate Professor Taira, faculty members at the Institute for Molecular Science.
Associate Professor Taira has developed the high power compact microchip laser, which is suitable for laser processing with one shot method.
The technique is constantly refined, adapting emerging technologies and techniques to provide higher efficiencies and quality.
<Advantages and Disadvantages of Different Laser Processing Methods>
SLM-200を用いたレーザー加工機の社内デモを実施しております。 実際に加工したいサンプルを持参いただければテスト加工することができます。 加工サンプルに対する対応可否を検討しますので事前に営業担当までお問合せください。
■レーザー加工
サンプル持込みによるテスト加工
加工条件等、技術者サポートあり
■利用条件等
利用日 ： 平日（※日程は営業担当者に問い合わせください。）
利用時間： 10時～17時
| Parameter | Unit | Specification | Notes |
|---|---|---|---|
|
Laser power |
W/mm2 |
5.5 |
|
|
Laser type |
– |
固体ﾚｰｻﾞｰ(532nm) |
他に488nmあり |
|
Process area |
mm |
5 x 5 |
対物ﾚﾝｽﾞ倍率：X2 |
|
0.5 x 0.5 |
対物ﾚﾝｽﾞ倍率：X20 |
||
|
Resolution |
µm |
200 |
対物ﾚﾝｽﾞ倍率：X2 |
|
20 |
対物ﾚﾝｽﾞ倍率X20 |
