Take Control of Light
Reflective Spatial Light Modulator (standard model)
SLM-200
Our reflective LCOS (liquid crystal on silicon) is an advanced spatial light modulator for full high resolution applications. WUXGA (1920 x 1200) resolution, 10-bit (1024 gray levels) and excellent phase stability (~0.001π rad.) make ultra-fine light modulation possible for various applications.
Features
■User-friendly DVI interface
The GUI software for the SLM series is available and can be downloaded from the designated page.

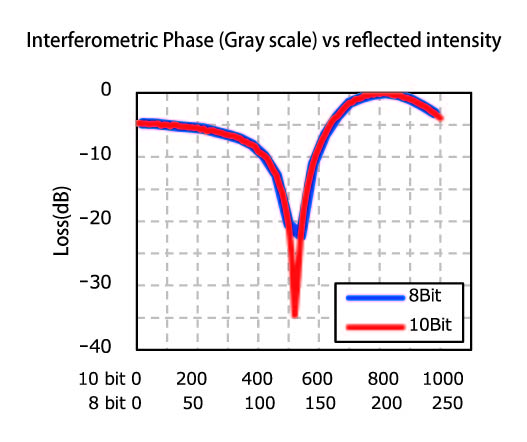

■High Resolution: 10-bit (1024 gray levels)

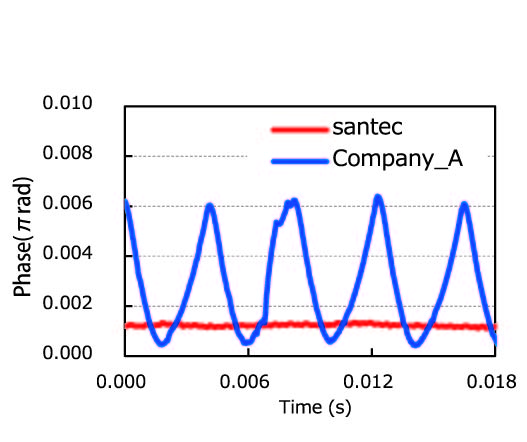

■Ultra-low Phase Noise: ～0.002π rad.
■Super Flatness Available: λ/4 @633 nm
The flatness of the LCOS can be corrected to λ/4 with the accompanying lookup table.
(If you purchased before March 2021, the data is not stored. Please contact us for more info.)

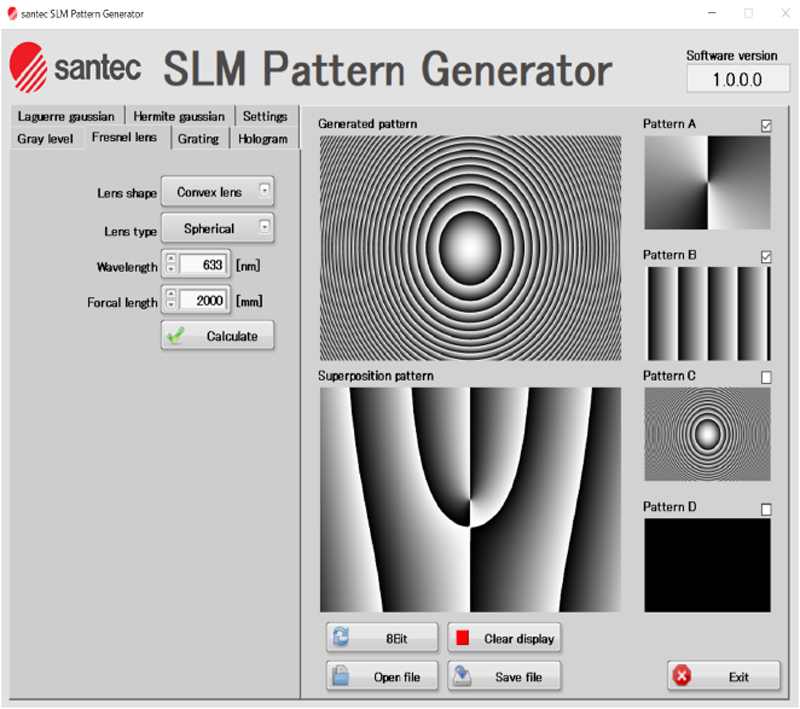

■Pattern Generator
The pattern generator software for the SLM series is available and can be downloaded from the designated page.
■SDK (Software Development Kit)
The SDK for the SLM series is available and can be downloaded from the designated page.
1.4.3 Supported OS
Windows10
1.4.4 Development environment
Recommended development environment:
・Visual Studio
・Python
・MATLAB
・LabVIEW
Select a DLL according to 64-bit and 32-bit development environment.
¥x64¥SLMFunc.dll ・・・ 64bit development environment.
¥x64¥FTD3XX.dll ・・・ 64bit development environment.
¥x86¥SLMFunc.dll ・・・ 32bit development environment.
¥x86¥FTD3XX.dll ・・・ 32bit development environment.
Place the SLMFunc.dll and FTD3XX.dll in the same folder as user program.

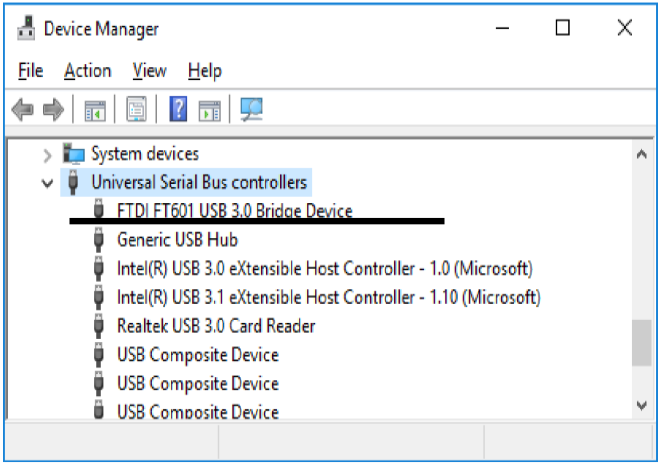

Check that the FT601 recognizes the folllowing when connecting the PC and SLM via USB.
Specifications
| Item | min. | max. | Units | Notes |
|---|---|---|---|---|
| Operating Wavelength Range | 400 | 1600 | nm |
No AR coating, |
| Panel Size | (H) 15.36 x (V) 9.60 | mm | Active area | |
| Pixel Resolution 1) | (H) 1920 x (V) 1200 | pixel | ||
| Pixel Size / Pitch | 7.8 / 8.0 | μm | ||
| Panel Reflectivity 2) | Typ. >70@532 nm | % | ||
| Aperture Ratio | 95 | % | ||
| Gray Level | 10 (1024) | bit | ||
| Frame Rate | 60 or 120 | Hz | Factory default setting | |
| LCOS Drive Frequency | 1200 | Hz | ||
| Phase Depth | 2π | – | rad. | |
| Phase Stability | Typ. < 0.001π | rad. | ||
| Response time 3) | Typ. 200 | ms | ||
| Interface | DVI*/ USB 3.0 | – | *10-bit using RGB 8-bit, 3 colors | |
| Operating Temperature Range | 15 | 35 |
℃ |
No condensation |
| Storage Temperature | 0 | 40 |
℃ |
No condensation |
| Optical Power Handling 4) | Typ. 10 | W/cm² | ＠1550 nm, CW, 2.0 mm beam diameter | |
| Dimensions | 117.6 x 117.6 x 33.7 | mm | ||
| Control Software | GUI software and SDK for Windows | – | ||
1) Specification on the defect pixels are no object.
2) Zero-order reflection.
Depending on specified wavelength range.
3) Response time is a typical value and is not affected by frame rate.
Tr: Rise time between 10% and 90% levels in a phase change of 0 to 1023 bit (2π rad.) at 25℃.
Tf: Fall time between 90% and 10% levels in a phase change of 1023 to 0 bit (2π rad.) at 25℃.
4) The value is not guaranteed.Depending on the conditions of the laser oscillator used,
the product's life may be significantly shortened due to accumulated exposure time.
< AR coating option >
| Item | -00 | -01 | -02 | -03 | -04 | -12 | -14 | -21 | Unit |
|---|---|---|---|---|---|---|---|---|---|
| Wavelength range 5) | no coating | 450-550 | 750-850 | 1000-1100 | 1500-1600 | 400-700 | 450-550 / 1500-1600 | 450-1600 | nm |
| AR coating reflectance 6) | 4 | < 0.5 | < 0.5 | < 0.5 | < 0.5 | < 1.5 | < 0.6 | < 2.5 | % |
5) We support custom AR coating request. Please contact us for detail.
6) Angle of incidence = 0 degree
Applications

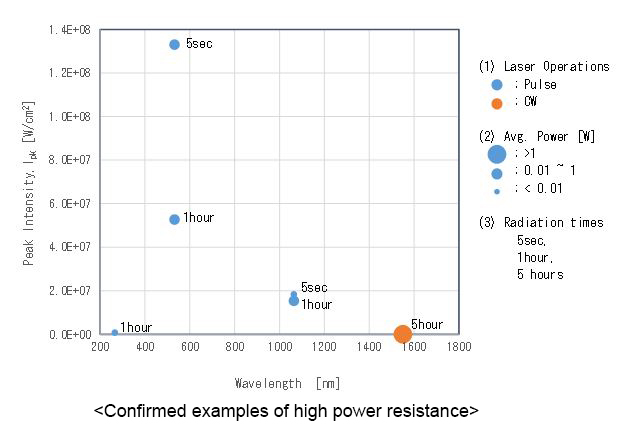

■LASER Processing and High Power Resistance
Below are examples for the high power resistance. We can do simulation with other conditions.

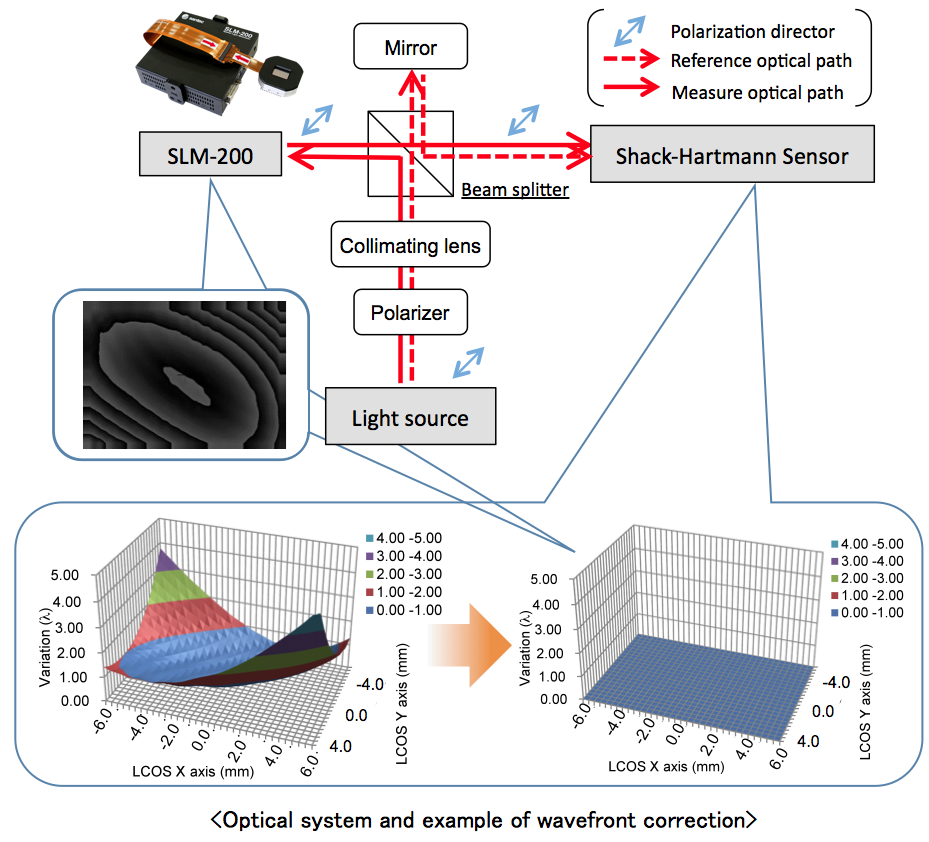

■Wavefront Correction
Flatness up to "lambda/40” can be achieved using a Michelson Interferometer with Shack-Hartmann sensor.

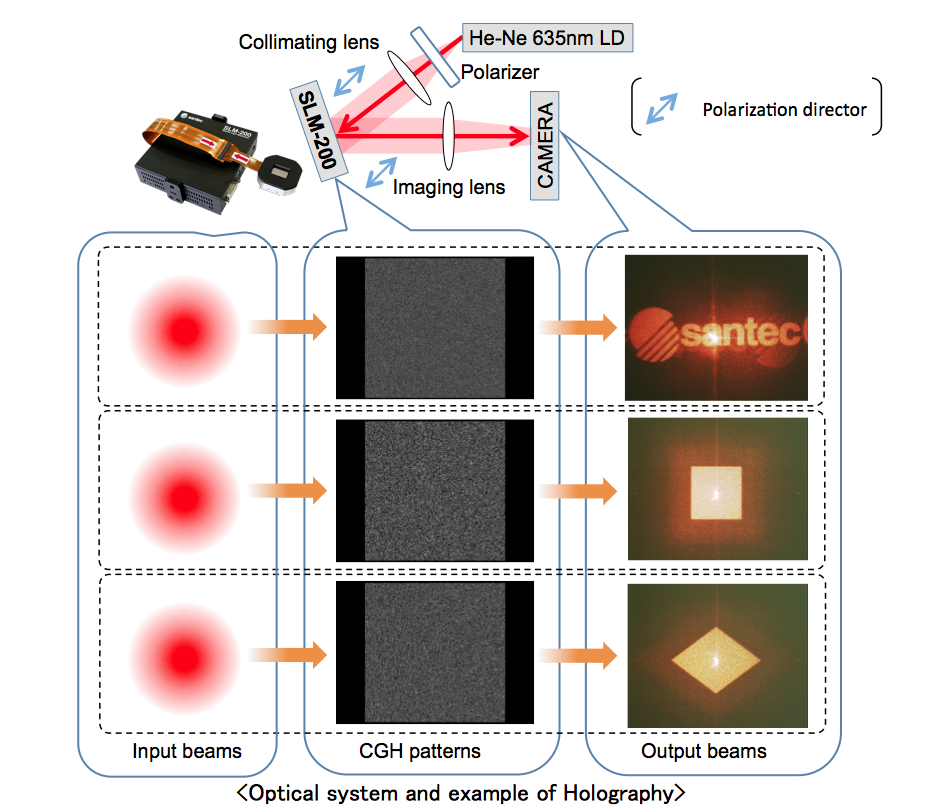

■Hologram
SLM-200 can be used for holography, made easier with our exclusive GUI.

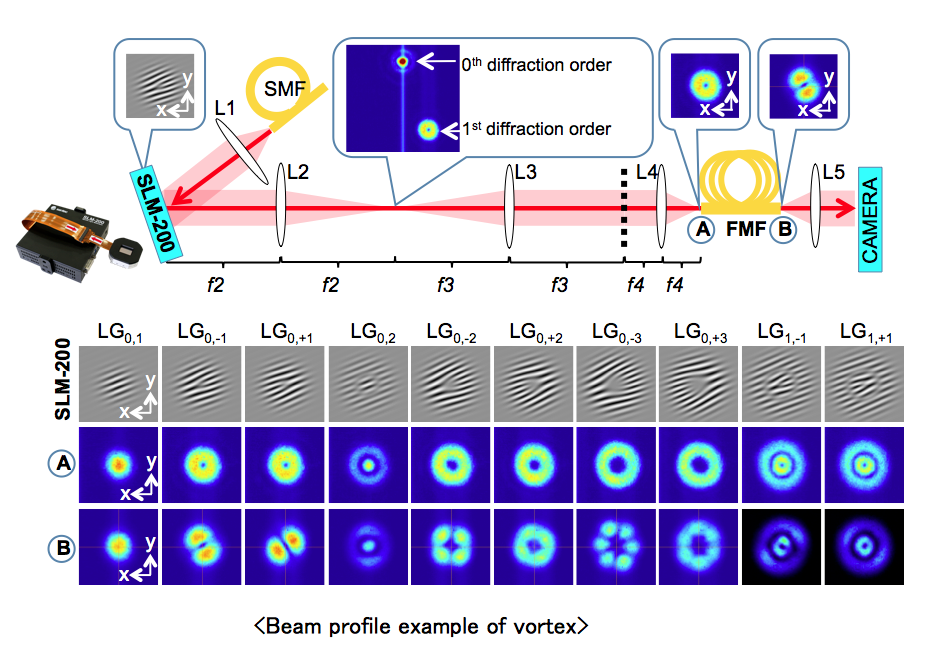

■Optical Vortex
SLM-200 can be used to generate optical vortex and be utilized for optical tweezer and SDM (Space Division Multiplexing) applications.
Beam steering
Wavefront correction
Pulse/Beam shaping
Diffractive optics
Optical tweezer

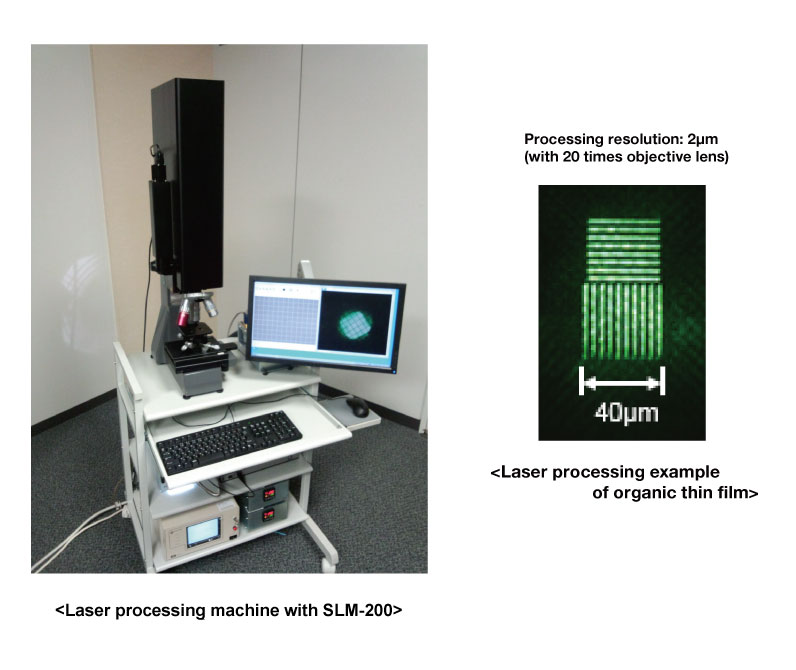

・Laser Processing Machine (※)
We are developing a Laser Processing Machine incorporating a SLM with Professor Yamamoto and Associate Professor Taira, faculty members at the Institute for Molecular Science.
Associate Professor Taira has developed the high power compact microchip laser, which is suitable for laser processing with one shot method.
The technique is constantly refined, adapting emerging technologies and techniques to provide higher efficiencies and quality.

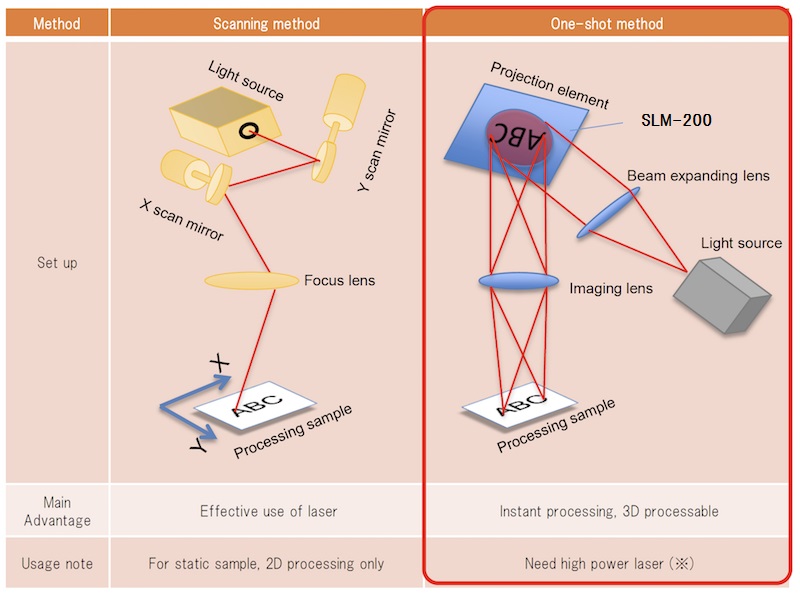

<Advantages and Disadvantages of Different Laser Processing Methods>
Introduction Video
Download
Catalog
Comparison Tables for Spatial Light Modulator (English)
Sofware
- GUI Software
- SLM Pattern Generator Installer
- SLM SDK for Windows
Papers
Dynamically patterning x-ray beam by a femtosecond optical laser
Published on: November 2024
Authors: Kenji Tamasaku, Takahiro Sato, Taito Osaka, Hitoshi Osawa, Diling Zhu, Tetsuya Ishikawa.
Publication: Science Advances
Issue/Year: Science Advances, Vol 10, Issue 47, 2024
DOI: 10.1126/sciadv.adp5326
Scan-less hyperspectral dual-comb single-pixel-imaging in both amplitude and phase
Published on: September 2017
Authors: Kyuki Shibuya, Takeo Minamikawa, Yasuhiro Mizutani, Hirotsugu Yamamoto, Kaoru Minoshima, Takeshi Yasui, and Tetsuo Iwata
Publication: Optics Express
Issue/Year: Optics Express Vol. 25, Issue 18, pp. 21947-21957 (2017)
DOI: 10.1364/OE.25.021947
Multiwavelength three-dimensional microscopy with spatially incoherent light, based on computational coherent superposition
Published on: May 2020
Authors: Tatsuki Tahara, Tomoyoshi Ito, Yasuyuki Ichihashi, and Ryutaro Oi
Publication:Optics Letters
Issue/Year: Optics Letters Vol. 45, Issue 9, pp. 2482-2485 (2020)
DOI: 10.1364/OL.386264
Quantum Airy photons
Published on: August 2018
Authors: Stephanie Maruca, Santosh Kumar, Yong Meng Sua, Jia-Yang Chen, Amin Shahverdi and Yu-Ping Huang
Publication: Journal of Physics B
Issue/Year: Journal of Physics B: Atomic, Molecular and Optical Physics, Volume 51, Number 17
DOI: 10.1088/1361-6455/aacac5
Spatial mode demultiplexing technique using angularly multiplexed volume holograms with a phase plate
Published on: August 2017
Authors: Shimpei Shimizu, Atsushi Okamoto, Fumiya Mizukawa, Kazuhisa Ogawa, Akihisa Tomita, Taketoshi Takahata, Satoshi Shinada and Naoya Wada
Publication: Japanese Journal of Applied Physics
Issue/Year: 2017 The Japan Society of Applied Physics Japanese Journal of Applied Physics, Volume 56, Number 9S
DOI: 10.7567/JJAP.56.09NA05
Orbital Angular Momentum-based Space Division Multiplexing for High-capacity Underwater Optical Communications
Published on:September 2016
Authors: Yongxiong Ren, Long Li, Zhe Wang, Seyedeh Mahsa Kamali, Ehsan Arbabi, Amir Arbabi, Zhe Zhao, Guodong Xie, Yinwen Cao, Nisar Ahmed, Yan Yan, Cong Liu, Asher J Willner, Solyman Ashrafi, Moshe Tur, Andrei Faraon, Alan E Willner
Publication: Scientific Reports
Issue/Year: Sci Rep. 2016 Sep 12;6:33306.
DOI: 10.1038/srep33306
Dynamic characterization of polarization property in liquid-crystal-on-silicon spatial light modulator using dual-comb spectroscopic polarimetry
Published on: August 2020
Authors: Hidenori Koresawa, Marc Gouryeb, Kyuki Shibuya, Takahiko Mizuno, Eiji Hase, Yu Tokizane, Ryo Oe, Takeo Minamikawa, and Takeshi Yasui
Publication: Optics Express
Issue/Year: Optics Express Vol. 28, Issue 16, pp. 23584-23593 (2020)
DOI: 10.1364/OE.399200
Holographic ultraviolet nanosecond laser processing using adaptive optics
Published on:March 2023
Authors: Satoshi Hasegawa, Mizuki Kato & Yoshio Hayasaki
Publication: Applied Physics B
Issue/Year: Appl. Phys. B 129, 52 (2023)
DOI: 10.1007/s00340-023-07993-1
Spatial Light Modulators Help Quantum Computer Research
At CLEO 2022 (the Conference on Lasers and Electro-Optics), six of MIT researchers presented papers on quantum computers using Santec's spatial light modulators.
FAQ
Q.Do you have reflectance data for the AR coating of LCOS-SLM?
Yes, we can provide reflectance data. Please contact us.
Related Articles
FELLOWSHIP
Complimentary Spatial Light Modulator for Your Research

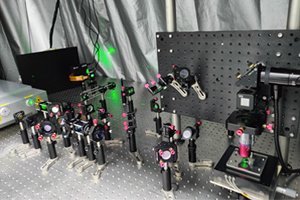

CASE STUDY
