High-Power LCOS Spatial Light Modulator
SLM-300
Our spatial light modulator (SLM) is based on reflective liquid crystal on silicon (LCOS) micro-display technology. SLM-300 high-power model holds the world record for high-power durability up to CW 200 Watts. SLM-300 has 100 times higher power durability when compared with Santec’s conventional SLM product, SLM-200.
Features
- High Power-durable LCOS based SLM
- High Phase Resolution 10-bit (1024) Gray Level
- Ultra Low Phase Noise ~0.003πrad.(Typ.)
Application
- Laser processing
- 3D printing
- IC trimming
Specifications
| Item | min. | max. | Units | Notes |
|---|---|---|---|---|
| Operating Wavelength Range | 532 , 800 , 1064 | nm | ||
| Panel Size | (H) 15.36 x (V) 9.60 | mm | Active area | |
| Pixel Resolution 1) | (H) 1920 x (V) 1200 | pixel | ||
| Pixel Size / Pitch | 7.8 / 8.0 | μm | ||
| Panel Reflectivity 2) | Typ. ＞80 | % |
|
|
| Aperture Ratio | 95 | % | ||
| Gray Level | 10 (1024) | bit | ||
| Frame Rate | 60 or 120 | Hz | Factory default setting | |
| LCOS Drive Frequency | 1200 | Hz | ||
| Phase Depth | 2π | - | rad. | |
| Phase Stability | Typ. < 0.003π | rad. | ||
| Response Time 3) | Typ. 200 | ms | ||
| Interface | DVI* / USB 3.0 | - | *10-bit using RGB 8-bit, 3 colors | |
| Operating Temperature Range | 15 | 35 | ℃ | No condensation |
| Storage Temperature | 0 | 40 | ℃ | No condensation |
| Optical Power Handling 4) | - | 200 | W/cm² | CW @1064 nm |
| Dimensions | 117.6 x 117.6 x 33.7 | mm | ||
| Control software | GUI software and SDK for Windows | - | ||
| Water Flow | 1 - 2 | L/min. | 15 - 25 ℃ | |
| Water Inlet and Outlet | Pipe fittings | - | Rc(PT) 3/8 inch female 5) | |
1) Specification on the defect pixels are no object.
2) Zero-order reflection.
Depending on specified wavelength range.
3) Response time is a typical value and is not affected by frame rate.
Tr: Rise time between 10% and 90% levels in a phase change of 0 to 1023 bit (2π rad.) at 25℃.
Tf: Fall time between 90% and 10% levels in a phase change of 1023 to 0 bit (2π rad.) at 25℃.
4) The value is not guaranteed.Depending on the conditions of the laser oscillator used,
the product's life may be significantly shortened due to accumulated exposure time.
5) Supports NPT standard using attached conversion adapters.

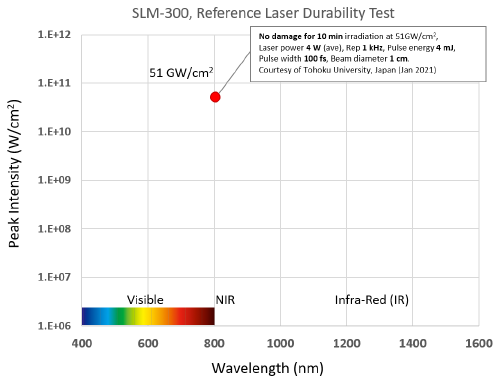

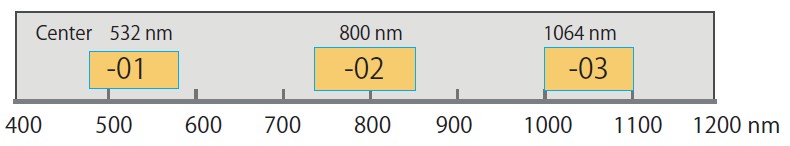

Wavelength option
Application
■Laser Welding Simulation
This simulation demonstrates the effectiveness of laser welding through precise beam profile control. By optimizing the beam intensity distribution, several improvements in welding quality and productivity can be expected, including (1) reduced spatter droplets, (2) fewer bubbles and voids within the weld, (3) minimized weld marks, and (4) increased welding speed.
Video Provided
Okayama University
Dep.of Mechanical Eng.
Nontraditional Machining Laboratory
Dr. Yasuhiro.Okamoto
Video
Download
Catalog
Comparison Tables for Spatial Light Modulator (English)
Sofware
- GUI Software
- SLM Pattern Generator Installer
- SLM SDK for Windows
Papers
Dynamically patterning x-ray beam by a femtosecond optical laser
Published on: November 2024
Authors: Kenji Tamasaku, Takahiro Sato, Taito Osaka, Hitoshi Osawa, Diling Zhu, Tetsuya Ishikawa.
Publication: Science Advances
Issue/Year: Science Advances, Vol 10, Issue 47, 2024
DOI: 10.1126/sciadv.adp5326
Scan-less hyperspectral dual-comb single-pixel-imaging in both amplitude and phase
Published on: September 2017
Authors: Kyuki Shibuya, Takeo Minamikawa, Yasuhiro Mizutani, Hirotsugu Yamamoto, Kaoru Minoshima, Takeshi Yasui, and Tetsuo Iwata
Publication: Optics Express
Issue/Year: Optics Express Vol. 25, Issue 18, pp. 21947-21957 (2017)
DOI: 10.1364/OE.25.021947
Multiwavelength three-dimensional microscopy with spatially incoherent light, based on computational coherent superposition
Published on: May 2020
Authors: Tatsuki Tahara, Tomoyoshi Ito, Yasuyuki Ichihashi, and Ryutaro Oi
Publication:Optics Letters
Issue/Year: Optics Letters Vol. 45, Issue 9, pp. 2482-2485 (2020)
DOI: 10.1364/OL.386264
Quantum Airy photons
Published on: August 2018
Authors: Stephanie Maruca, Santosh Kumar, Yong Meng Sua, Jia-Yang Chen, Amin Shahverdi and Yu-Ping Huang
Publication: Journal of Physics B
Issue/Year: Journal of Physics B: Atomic, Molecular and Optical Physics, Volume 51, Number 17
DOI: 10.1088/1361-6455/aacac5
Spatial mode demultiplexing technique using angularly multiplexed volume holograms with a phase plate
Published on: August 2017
Authors: Shimpei Shimizu, Atsushi Okamoto, Fumiya Mizukawa, Kazuhisa Ogawa, Akihisa Tomita, Taketoshi Takahata, Satoshi Shinada and Naoya Wada
Publication: Japanese Journal of Applied Physics
Issue/Year: 2017 The Japan Society of Applied Physics Japanese Journal of Applied Physics, Volume 56, Number 9S
DOI: 10.7567/JJAP.56.09NA05
Orbital Angular Momentum-based Space Division Multiplexing for High-capacity Underwater Optical Communications
Published on:September 2016
Authors: Yongxiong Ren, Long Li, Zhe Wang, Seyedeh Mahsa Kamali, Ehsan Arbabi, Amir Arbabi, Zhe Zhao, Guodong Xie, Yinwen Cao, Nisar Ahmed, Yan Yan, Cong Liu, Asher J Willner, Solyman Ashrafi, Moshe Tur, Andrei Faraon, Alan E Willner
Publication: Scientific Reports
Issue/Year: Sci Rep. 2016 Sep 12;6:33306.
DOI: 10.1038/srep33306
Dynamic characterization of polarization property in liquid-crystal-on-silicon spatial light modulator using dual-comb spectroscopic polarimetry
Published on: August 2020
Authors: Hidenori Koresawa, Marc Gouryeb, Kyuki Shibuya, Takahiko Mizuno, Eiji Hase, Yu Tokizane, Ryo Oe, Takeo Minamikawa, and Takeshi Yasui
Publication: Optics Express
Issue/Year: Optics Express Vol. 28, Issue 16, pp. 23584-23593 (2020)
DOI: 10.1364/OE.399200
Holographic ultraviolet nanosecond laser processing using adaptive optics
Published on:March 2023
Authors: Satoshi Hasegawa, Mizuki Kato & Yoshio Hayasaki
Publication: Applied Physics B
Issue/Year: Appl. Phys. B 129, 52 (2023)
DOI: 10.1007/s00340-023-07993-1
Spatial Light Modulators Help Quantum Computer Research
At CLEO 2022 (the Conference on Lasers and Electro-Optics), six of MIT researchers presented papers on quantum computers using Santec's spatial light modulators.
FAQ
Q.Is it possible to specify the frame rate for LCOS-SLM?
Yes, please select 60Hz/120Hz when ordering.
(You cannot switch frame rates after purchase.)
Related Articles
FELLOWSHIP
Complimentary Spatial Light Modulator for Your Research
CASE STUDY
Customer Feedback on Spatial Light Modulators
WEBINAR
Archived Webinar on Spatial Light Modulators
BLOG
What is a Spatial Light Modulator?
BLOG
Applications of Spatial Light Modulators
BLOG
How to Select Spatial Light Modulators and Necessary Characteristics
