Product Name: Polarization Maintaining Optical Switch
Model: OSX-100

SANTEC Group, a leading manufacturer of advanced optical components, tunable lasers, optical test equipment, and OCT systems, announces the product launch of the polarization maintaining OSX-100 optical switch. It is well suited for applications such as lab and R&D, automated device testing or high-volume production testing.　Covering a wide wavelength range from 1250 to 1670 nm, the PM OSX-100 is built with Panda PM fiber. Excellent ± 0.005 dB repeatability, PER > 23 dB and IL < 1.0 dB make the OSX-100 invisible to your application. Standard configurations use SC or FC bulkheads up to 24 channels, however, higher channel counts, customized fiber types and wavelength ranges are possible upon request.
The OSX-100 is easy to incorporate into any test setup with SCPI commands via USB or Ethernet. An optional front panel touchscreen is also available for local control.

More details are available at: https://inst.santec.com/products/switch/osx-100

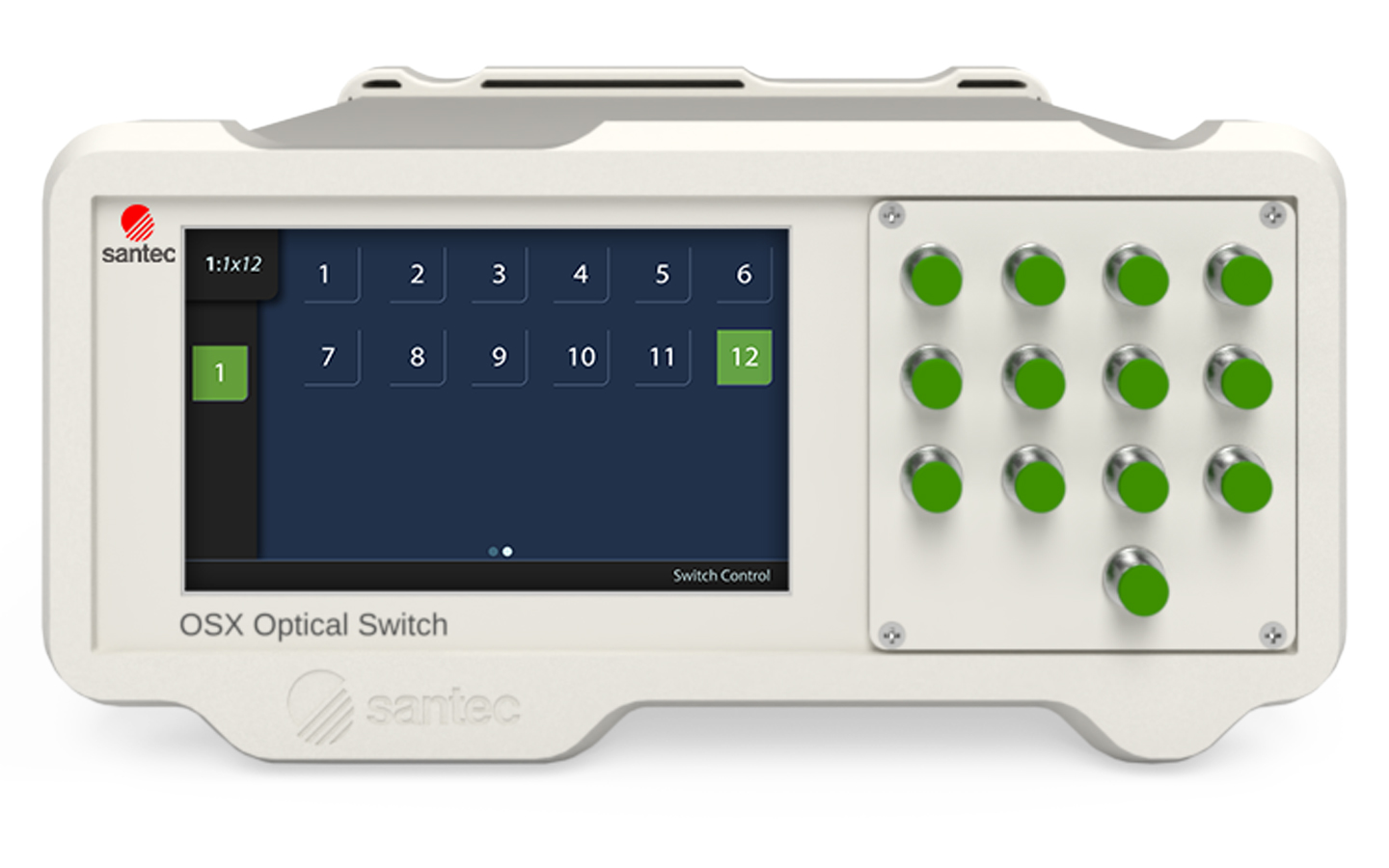

OSX-100
