Outstanding Performance
SLM-200
当社の反射型LCOS (liquid crystal on silicon) は高分解能用途に最適な空間光変調器です。解像度WUXGA (1920 x 1200)、10-bit (1024 階調)と優れた位相安定度(~0.001π rad.) は、精密な空間光変調器を要求する数多くの応用に最適なソリューションを提供します。
付属する校正データを用いることで2次元パネル内の位相を<λ/4に補正することができます。
波面データの添付は準備中です。

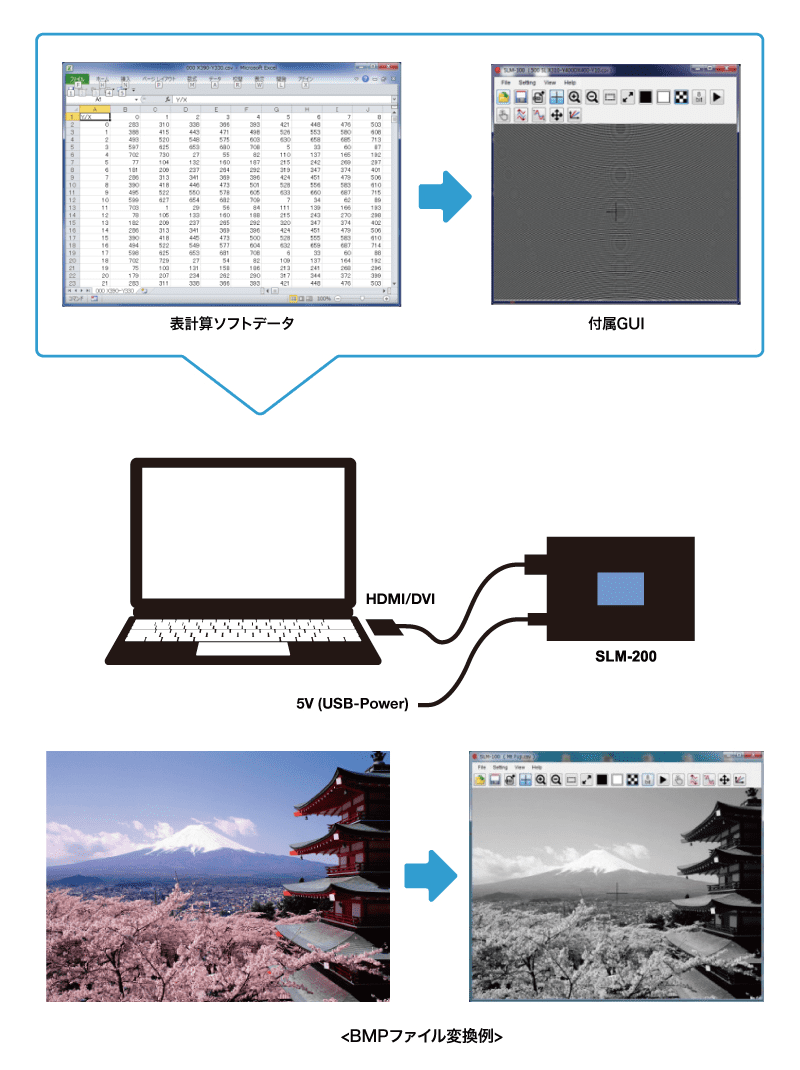

SDKはSLMシリーズのSLM-200, SLM-250, SLM-300に対応します。
同ソフトウエアは、ダウンロード欄より入手できます。
1.4.3 Supported OS
Windows10
1.4.4 Development environment
Recommended development environment:
・Visual Studio
・Python
・MATLAB
・LabVIEW
Select a DLL according to 64-bit and 32-bit development environment.
¥x64¥SLMFunc.dll ・・・ 64bit development environment.
¥x64¥FTD3XX.dll ・・・ 64bit development environment.
¥x86¥SLMFunc.dll ・・・ 32bit development environment.
¥x86¥FTD3XX.dll ・・・ 32bit development environment.
Place the SLMFunc.dll and FTD3XX.dll in the same folder as user program.
Check that the FT601 recognizes the folllowing when connecting the PC and SLM via USB.
Item | min. | max. | Units | Notes |
---|---|---|---|---|
Wavelength range (波長) |
450 | 1600 | nm | (Refer to appended table about AR coating option) |
Panel size (パネルサイズ) |
(H) 15.36 x (V) 9.60 | mm | Active area | |
Panel resolution (パネル解像度) |
(H) 1920 x (V) 1200 | pixel | ||
Pixel size / pitch (画素サイズ / ピッチ) |
7.8 / 8.0 | μm | ||
Panel reflectivity (パネル反射率) |
Typ. > 90 | % | Depending on specified wavelength range | |
Aperture ratio (開口率) |
95 | % | ||
Gray level (位相設定分解能) |
10 (1024) | bit | ||
Frame rate (フレームレート) |
60 or 120 | Hz | Factory default setting | |
LCOS drive frequency (LCOS駆動周波数) |
1200 | Hz | ||
Phase depth (最大位相変調量) |
2π | – | rad. | |
Phase stability (位相安定性) |
Typ. < 0.001π | rad. | ||
Interface (インターフェース) |
DVI*/ USB 3.0 | – | *10-bit using RGB 8-bit, 3 colors | |
Operating temperature (動作温度範囲) |
15 | 35 | degC | No condensation |
Storage temperature (保管温度範囲) |
0 | 40 | degC | No condensation |
Optical power handling (耐光性) |
Typ. 10 1) | W/cm² | @1550 nm, CW, 2.0 mm beam diameter | |
Dimensions (外形寸法) |
117.6 x 117.6 x 33.7 | mm | ||
Control software (制御ソフトウェア) |
GUI software and SDK for Windows | – |
1) The value is not guaranteed. Please refer santec SLM technical sheet in one instance for judgement of useable light power.
AR coating option
Item | Parameter | Units | ||||||
---|---|---|---|---|---|---|---|---|
Ordering code number | -01 | -02 | -03 | -04 | -12 | -14 | -21 | – |
AR coating range | 450-550 | 750-850 | 1000-1100 | 1500-1600 | 400-700 | 450-550 / 1500-1600 |
450 - 1600 |
nm |
AR coating reflectance 2) | < 0.5 | < 1.5 | < 0.6 | < 2.5 | % |
2) Angle of incidence = 0 degree

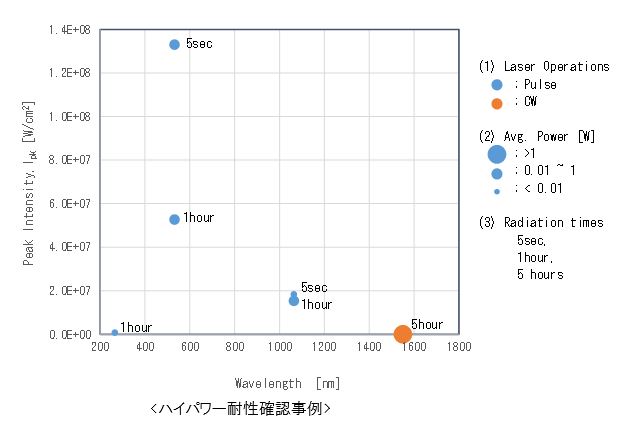

LCOSのハイパワー耐性に関して、いくつかの照射事例をご紹介します。これらの条件以外にも実際に使用されるパワー条件等を教示いただければシミュレーションすることも可能です。

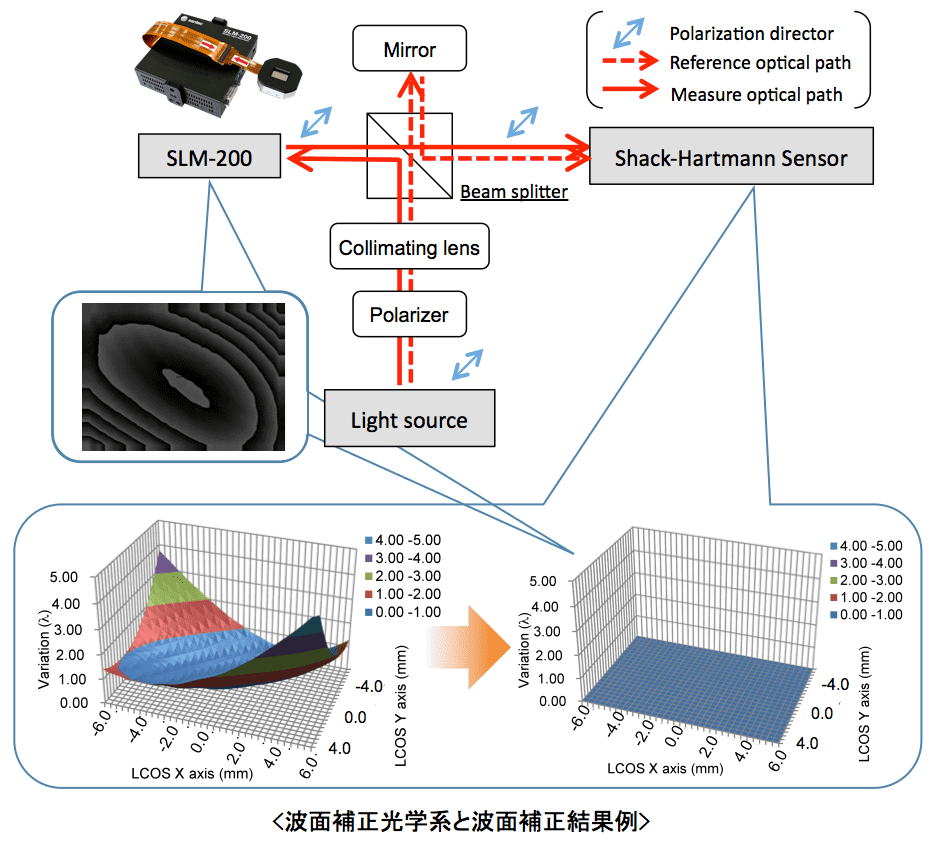

シャックハルトマンセンサーを用いたマイケルソン干渉系にて”λ/40”を 達成することができます。
レーザー加工
オプトジェネティクス/光ピンセット
3Dプリンター/3Dホログラフィックディスプレイ

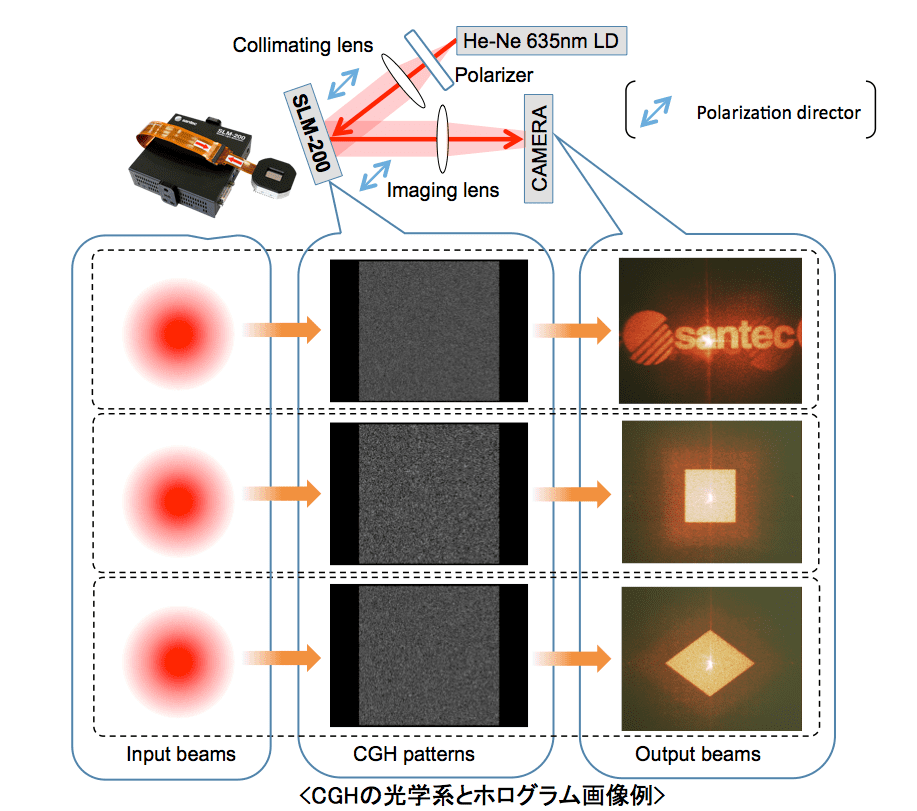

SLM-200専用プログラムを用いてホログラムを生成することができます。 ホログラムを用いることにより光利用効率が向上します。
光通信/空間分割多重
光ピンセット

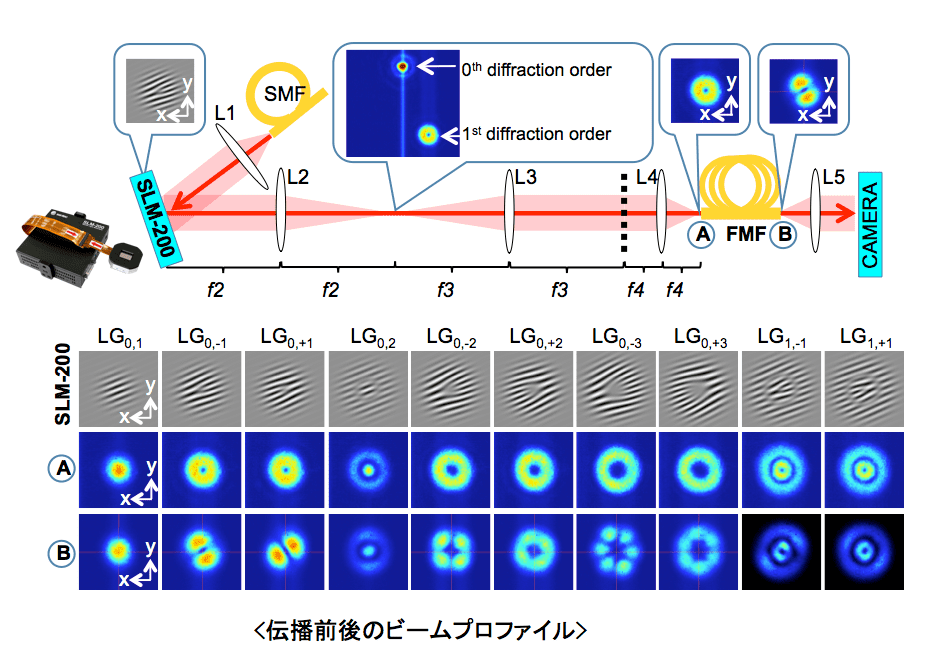

光渦を生成することにより光ピンセット用途や空間分割多重通信(SDM:Space-division multiplexing)に応用できます。
光ビーム操作
波面補正
光ビーム/波面整形
回折光学
光ピンセット

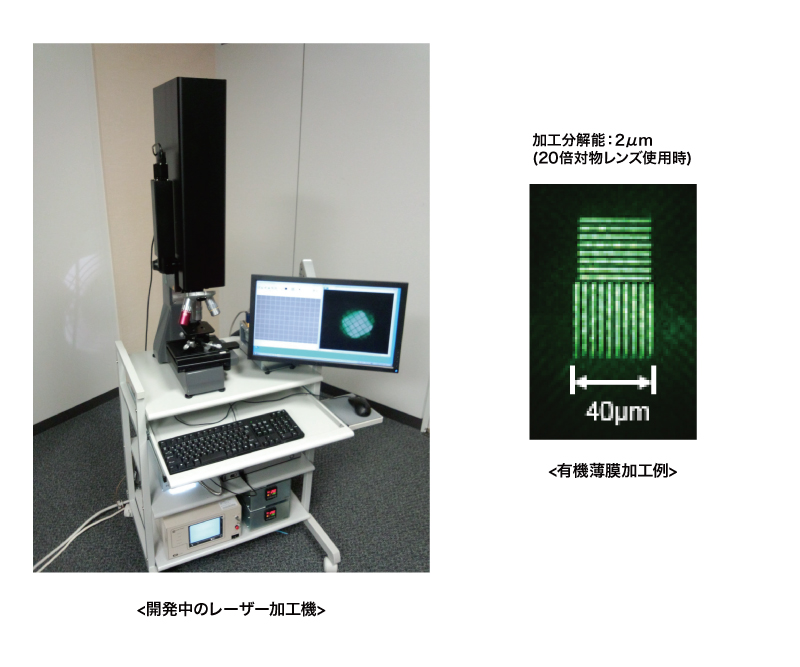

レーザー加工機 (※)

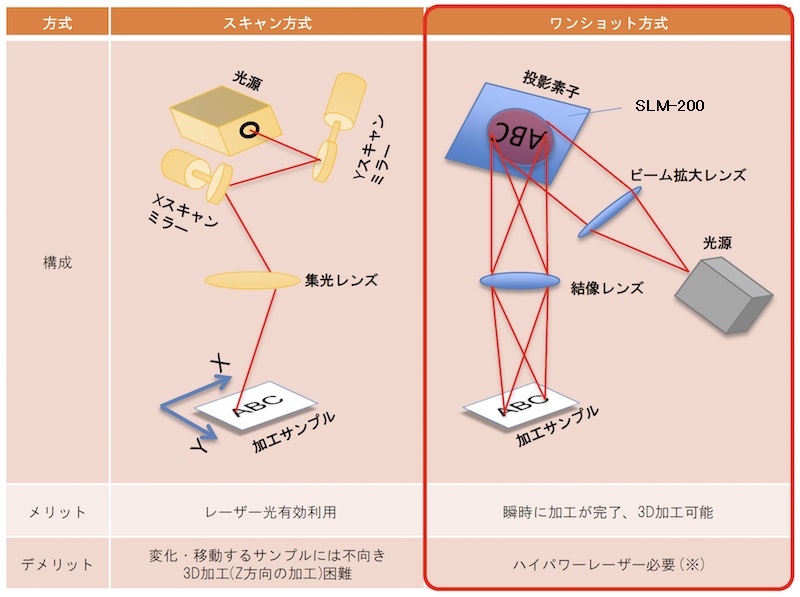

高精細なLCOSを搭載したSLM-200を用いてワンショット方式のレーザー加工機の開発を進めております。 本開発には分子科学研究所の
山本教授、平等教授と連携し取り組んでおります。特にワンショット方式の課題であったハイパワーレーザーは、平等教授開発のハイパワーマイクロチップレーザーを用いることで解決しております(※)。また、多点ビーム形成時の光利用効率を向上するためにホログラム技術を取り入れることも検討しております。
